Servo Motor Digital Silk Screen Printing Machine Foot Control
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SBS380 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/YEAR |
|
Detail Information |
|||
| Color: | 1 Color Or Multi Colors | Condition: | New |
|---|---|---|---|
| Printing Durability: | High Durability | Automatic Grade: | Semi-automatic |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | Digital Silk Screen Printing Machine,Foot Control Silk Screen Printing Machine |
||
Product Description

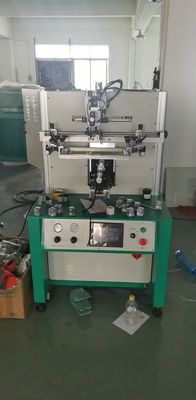

Servo Motor Digital Silk Screen Printer Oval Automatic Screen Printing Machine Max Printing Area 350 X250mm Foot Control
Applications:
1. This is a well-designed, versatile machine that prints a wide range of shapes such as cylindrical, square, oval, conical and irregular shapes. Quick and easy mold change, precise mechanical registration and convenient controls on the front panel make the SBS380 the perfect general-purpose screen printing machine for printing on glass, metal, plastics and ceramics.

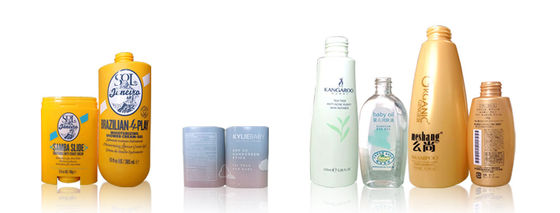

2. Primarily used for single to multi-color repeat screen printing of round/oval plastic containers such as detergents, cosmetics, pharmaceuticals, food and decorative items.
Technical Specifications:
| Max printing area | L350 X W250mm |
| Max screen frame size | L550 X W400mm |
| Product diameter | Φ120mm |
| Max printing speed | Up to 1000pcs/hour |
Technical Characteristics
1. Electric servo motor drive for screen frame lifting and horizontal printing.
2. PLC control with WEINVIEW touch screen.
3. Panasonic motor and inverter.
4. Vertical lifting head with height adjustment.
5. X/Y/R positioning table with vacuum adsorption table.
6. Linear ball bearings on hard shaft.
7. Squeegee angle and calibration height adjustment.
8. Adjustable squeegee pressure with pressure gauge.
9. Floor level and casters with foot switch control.
10. Electronic stop button and safety light curtain installed.
11. Automatic closing screen frame when printing.
Advantages:
1. If there is a register point as shown in the red circle above, then you do not need a color sensor if you want to print more than one color. We can customize the machine to add or not add sensors.
2. SBS380 can print oval/square/complex shaped containers.
3. SBS380 is all packaged for extra safety and durability.
4. All machines including elevator are controlled by servo drive.
