Semi Automatic Screen Printing Machine For Cylindrical Buckets
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SA1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/YEAR |
|
Detail Information |
|||
| Plate Type: | Screen Printing Machine | Condition: | New |
|---|---|---|---|
| Printing Durability: | High Durability | Automatic Grade: | Semi-automatic |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | Cylindrical Buckets Screen Printing Machine,Semi Automatic Screen Printing Machine |
||
Product Description

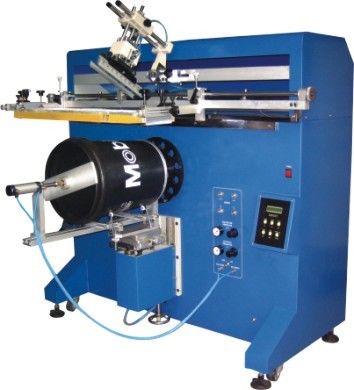

Multi-Purpose Semi Automatic Screen Printing Machine For Cylindrical Buckets Max Printing Area Is 900X250mm
Application Scope:
SA1000 is designed for printing on cylindrical containers. The printing area is very large (container diameter Φ20-Φ300mm). The important parts of the machine are all imported brand-name products. Thanks to the left and right sliding reinforced structure design, squeegee and optional multifunctional printing operation, the machine runs stably and colors accurately.
Technical Characteristics:
1. Microcomputer control each function action, high degree of automation, simple and convenient operation.
2. Built-in 4-digit automatic counter and reset function.
3. The machine has 9 speeds to choose from, which can meet different printing requirements.
4. With container filling and pressure adjustment function.
5 Squeegee pressure is adjustable, and squeegee parts have X, y, Z and Z-R direction and angle fine adjustment function.
6 Table and frame components with X, y, Z and xy-r directional and angular adjustment functions.
Technical Specifications:
According to printing area's size, we have below different machines:
| Mode | SA250 | SA400 | SA700 | SA1000 |
| Max. printing area | 200X250mm | 350X250mm | 600X250mm | 900X250mm |
| Max.screen frame size | 450X400mm | 550X400mm | 850X400mm | 1200X400mm |
| Max.printing diameter | Φ100mm | Φ120mm | Φ200mm | Φ300mm |
| Max.printing speed | up to 1000pcs/hr | up to 1000pcs/hr | up to 800pcs/hr | up to 600pcs/hr |
Specific technical points for SA1000
| Power supply voltage | 220V, 50HZ |
| Power consumption | 50W |
| Air supply pressure | 4-6 kg/cm2 |
| Machine weight | 250kg |
| Dimensions | L1450×B1150×H1300mm |
