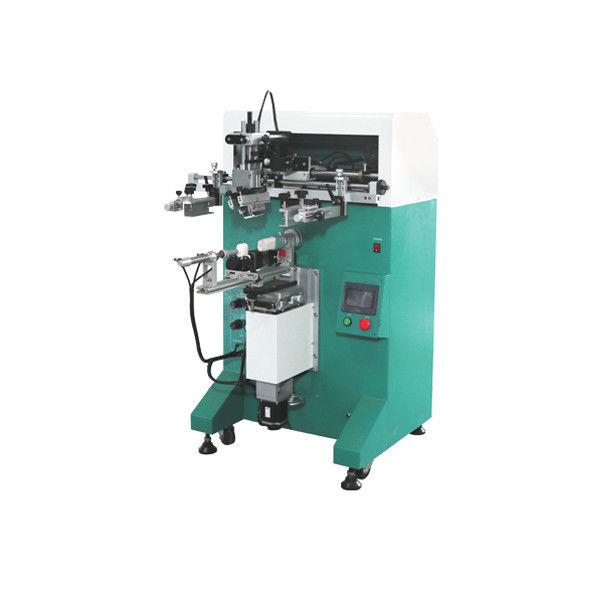

Semi Automatic Screen Printer 300X250mm , Bottle Printing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SA400-D2/D4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/YEAR |
|
Detail Information |
|||
| Plate Type: | Screen Printing Machine | Condition: | New |
|---|---|---|---|
| Printing Durability: | High Durability | Automatic Grade: | Semi-automatic |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | 300X250mm Semi Automatic Screen Printer,Bottle Semi Automatic Screen Printer |
||
Product Description
Cylindrical/Elliptical/Irregular Bottle And Container Servo-Drive Semi Automatic Screen Printing Machine Printer
Technical Characteristics
This is a well-designed, versatile machine.The SA400-D2 can screen print on cylindrical and oval objects, and the SA400-D4 can screen print on irregular or complex shapes, such as blow molded bottles, cosmetic tubes, aluminum water bottles, drumsticks, glass straws, and more.
The SA400-D2/D4 features quick and easy mold changes, precise mechanical registration, and all controls are on the front panel, making the SA400-D2/D4 the perfect general purpose screen printer.
- - Pneumatic Control with Shock Absorber
- - Microprocessor Control - PCB
- - Vertical part lift with height adjustment
- - Rodless cylinder to control printing stroke
- - X/Y/R positioning instrument mounting table
- - Linear ball bearings on hardened shafts
- - Squeegee tilt, skew and height adjustable
- - Adjustable screen frame angle and tilt
- - Synchronized bottle filling system with regulator
- - Adjustable squeegee pressure with pressure gauge
- - Floor level and castors
- - Foot switch control
- - Servo drive for greater stability
Application Scope:
It is mainly used for single to multi-color repeat screen printing on round/oval/irregular plastic containers such as detergents, cosmetics, pharmaceuticals, foodstuffs and decorative items.
Technical Specifications:
SA400-D2 is for cylindrical and elliptical containers and SA400-D4 is for irregular/complex objects:
| Mode | SA400-D2 | SAS400-D4 | SA1200-D2 |
| Container shape | Cylindrical and Elliptical | Irregular | Cylindrical and Elliptical |
| Max. printing area | 300X250mm | 300X250mm | 1000X250mm |
| Max.screen frame size | 550X400mm | 550X400mm | 1200X400mm |
| Max.printing diameter | Φ100mm | Φ100mm | Φ300mm |
| Max.printing speed | up to 1000pcs/hr | up to 1000pcs/hr | up to 600pcs/hr |
SA400-D2
SA400-D4
Printing samples
Customer's factory using our machine:
With years of development, Senny can provide premium quality automatic screen-printing machine, labelling machine, pad printing machine, hot-stamping machine and other printing packaging and services according to customers' special products and demands.
