Semi Automatic Screen Printing Machine With 1000pcs/Hr For Silk
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SA250/SA700 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/YEAR |
|
Detail Information |
|||
| Plate Type: | Screen Printing Machine | Condition: | New |
|---|---|---|---|
| Printing Durability: | High Durability | Automatic Grade: | Semi-automatic |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | 1000pcs/Hr Semi Automatic Screen Printing Machine,Silk Semi Automatic Screen Printing Machine |
||
Product Description
Semi Automatic Bottle Container/Bucket Tube Silk Screen Printing Machine
Application Scope:
SA250/700 is mainly used for single to multi-color repetitive screen printing on plastic containers, electrical appliances, decorative glass, toys, signs, chassis and so on. It can print cylindrical, oval and flat surfaces. It also has blow molding function. The important parts of the machine are all imported famous brand products. In addition, the unique screen frame reinforcement structure and versatile printing options make printing more precise.
Technical Characteristics:
1. Microcomputer control each function action, high degree of automation, simple and convenient operation.
2. Built-in 4-digit automatic counter and reset function.
3. The machine has 9 kinds of speed selections, which can meet different printing requirements.
4. With container filling and pressure adjustment function.
5. Squeegee pressure is adjustable, and the squeegee parts have X, Y, Z and Z-R direction and angle fine-tuning function.
6. The table and frame parts can realize X, y, Z and xy-r direction and angle adjustment function.
Technical Specifications:
According to printing area's size, we have below different machines:
| Mode | SA250 | SA400 | SA700 | SA1000 |
| Max. printing area | 200X250mm | 350X250mm | 600X250mm | 900X250mm |
| Max.screen frame size | 450X400mm | 550X400mm | 850X400mm | 1200X400mm |
| Max.printing diameter | Φ100mm | Φ120mm | Φ200mm | Φ300mm |
| Max.printing speed | up to 1000pcs/hr | up to 1000pcs/hr | up to 800pcs/hr | up to 600pcs/hr |

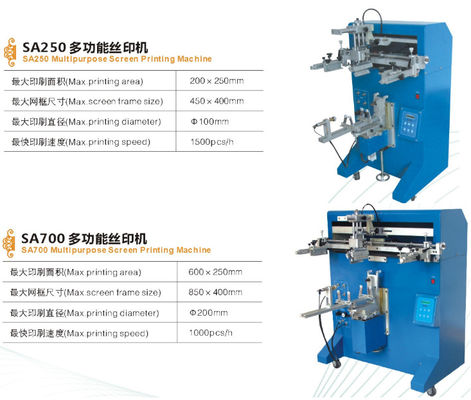

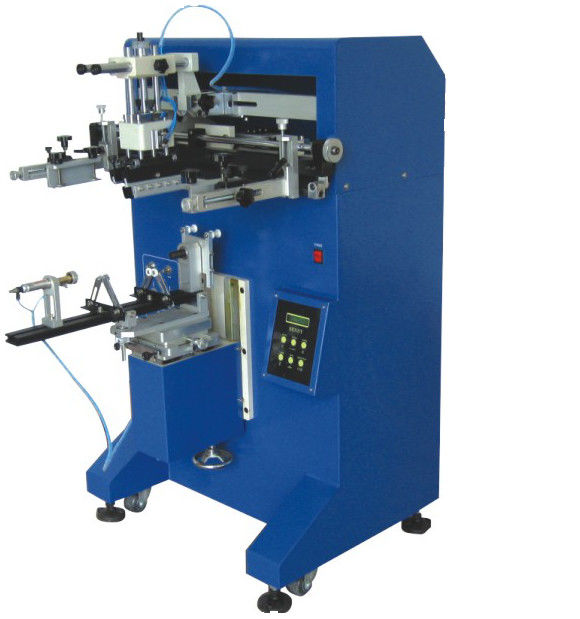

SA250

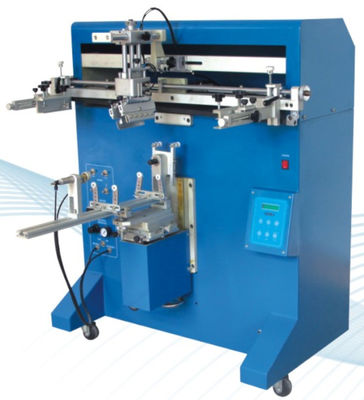

SA700
