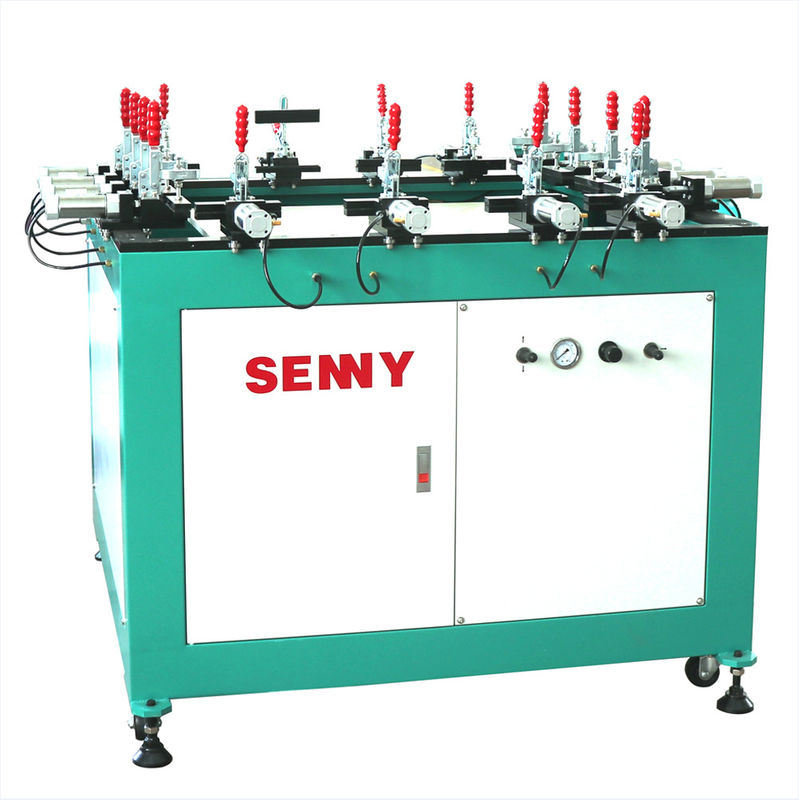

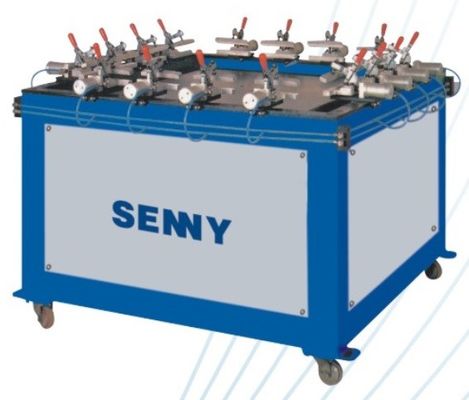

Screen Printing Stretching Machine , 750X750mm Pneumatic Screen Stretcher
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | LW16 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 20PCS/month |
|
Detail Information |
|||
| Frame Streching Size: | 800 X 800mm | Type: | Auxiliary Machine |
|---|---|---|---|
| Printing Durability: | High Durability | Automatic Grade: | Semi-automatic |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | 750X750mm Screen Printing Stretching Machine,750X750mm Screen Stretcher,Pneumatic Screen Printing Stretching Machine |
||
Product Description
Semi Automatic Screen Streatching Frame Machine High High Precision Auxiliary Equipment Before Printing
Application Scope:
Suitable for stretching silk screen plate.
Features and Performance:
1. The type of equipment is four-side movable type, very suitable for tensile screen mesh with high tension, easy to operate, stable and even tension.
2. Adjust the stretching screen cloth arbitrarily according to the size of the screen frame, and the inclined chuck makes the chuck and the screen cloth better combined.
3. High power, large stroke cylinder, other pneumatic components are from Taiwan, to ensure stable and reliable tension.
4. Imported adjustable handle, automatic synchronization, stable and uniform tension.
5. Imported quick clamps to ensure the flexibility and stability of the mesh clamps; the length of the chuck is 120mm, with plastic pads to avoid damage to the mesh.
6. Soft rubber, good elasticity, strong and durable, so that the screen cloth does not crack when stretching the screen.
7. Equipped with pneumatic screen frame base, easy to stretch the screen.
8. Platform can be made according to the number of collets.
Product Specifications:
| Frame size can be stretched | 750 X 750mm |
| Air Pressure | 4-6 kg/cm2 |
| Qty of air cylinder | 16 |
| Machine weight | 300KG |
| Dimensions | L1250×B1250×H1100mm |
LW16 Screen Frame Stretching machine under producing:
Factory View:
