380V Semi Automatic Screen Printing Machine For Making Stencil
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SB6090 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 20PCS/month |
|
Detail Information |
|||
| Proximity Exposure: | Vacuum Contact | Vacuum Frame Size: | 600 X 900mm |
|---|---|---|---|
| Printing Durability: | High Durability | Automatic Grade: | Semi-automatic |
| Warranty: | 1 Year | Machine Color: | Customerized Or As Pic |
| Highlight: | 380V Screen Printing Machine,380V Semi Automatic Screen Printing Machine,Screen Printing Machine For Making Stencil |
||
Product Description

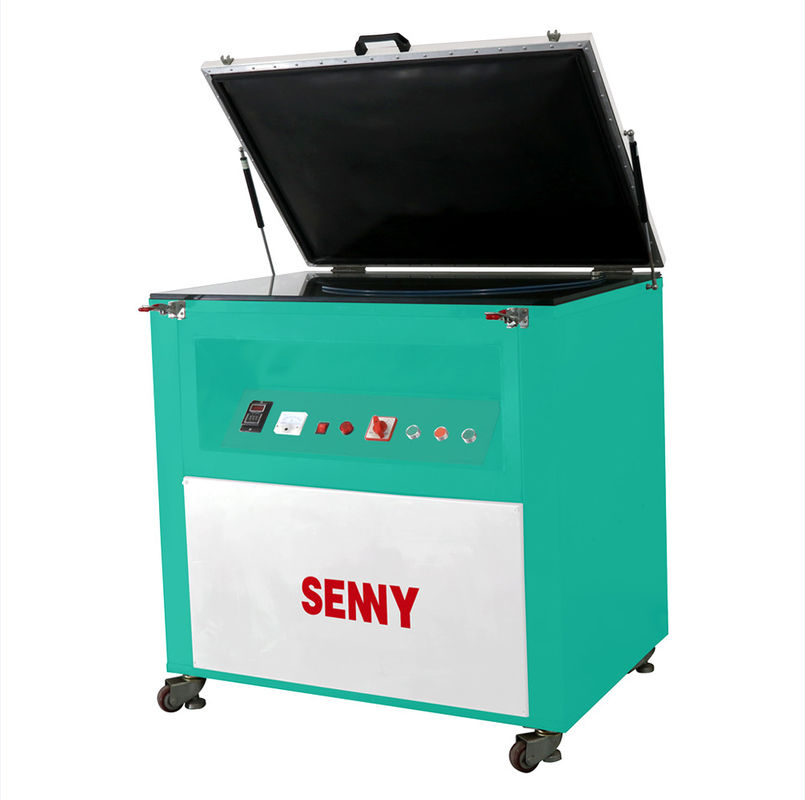

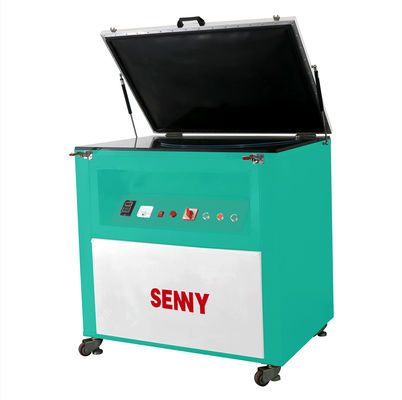

Semi Automatic Vacuum Exposure Unit Screen Printing For Making Stencil, Vacuum Frame Machine
Application Scope:
This automatic exposure machine is used to expose high quality stencils for halftone work and high density line stencils.
Features and Performance:
1. Quick-start type exposure system (including exposure lamp, trigger capacitor, transformer, etc.); stable and uniform light intensity and exposure pattern Fine lines.
2. Imported sealing blanket, soft and flexible, soft and durable, sealing and adhesion are exceptionally good.
3. Branded high efficiency energy-saving lamps, strong exposure, long life, improve exposure accuracy.
4. Special energy-saving glass, to ensure the flatness of the working table, to ensure the precision of exposure.
5. High-power vacuum adsorption strong machine, ensure the film and screen plate close contact, ensure the exposure precision, so that the graphics do not shrink, do not enlarge, do not shift.
6. Surface with electrostatic spraying and degreasing varnish to ensure the durability and corrosion resistance of the machine.
Product specifications:
| Power voltage | 380V 50Hz |
| Power consumption | 2.2 kw |
| Machine Weight | 100KG |
| Lamp Power | 2 kw |
| Dimensions | L1000×B900×H1100mm |
