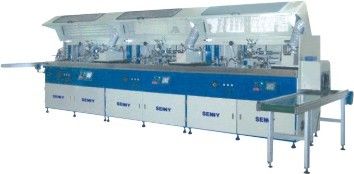

Complex Shapes Screen Printing Machine With Hot Stamping And Labeling Function
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL1488 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Printed Colors: | 1-12 Colors | Condition: | New |
|---|---|---|---|
| Printing Durability: | High Durability | Warranty: | 1 Year |
| Automatic Grade: | Automatic | Plate Type: | Screen Printer With Hot Stamping |
| Highlight: | Labeling Function Screen Printing Machine,Complex Shapes Screen Printing Machine,Hot Stamping Screen Printing Machine |
||
Product Description
Complex Shapes Fully Automatic Screen Printing Machine With Hot Stamping And Labeling Function, Three In One Machine
Optional configuration:
1. Screen printing and labeling machine
a. Screen printing and labeling head interchangeable function, such as 2-color screen printing and labeling machine SL1488-2CT
b. Screen printing and labeling functions, e.g. single color screen printing and labeling machine SL1488-1CT
c. Labeling machines, e.g. Double Head Labeler SL1488-2T
2. Screen printing and hot stamping machines
a. Screen printing and hot stamping interchangeable functions, e.g. 2-color screen printing and hot stamping machine SL1488-2CH
b. Screen printing and hot stamping functions, e.g. 1-color screen printing and hot stamping machine SL1488-1CH
c. Foil stamping machines, e.g. Double Head Foil Stamping Machine SL1488-2H
Technical Specifications:
| Machine running speed | Up to 100pcs/min (printing speed varies from bottles to bottles) |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Flat bottle radius | 50-250mm |
| Flat bottle width | 20-130mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW(1 color ) * N colors |
| Machine weight | Main machine-1200kgs; Auxiliary machine-1000kgs |
| Machine size |
Main machine-L 2900mm * W 1200mm * H 2000mm(excluding feeding and uploading convey belt) Auxiliary machine-L 1190mm * W 1200mm * H 2000mm |
Fully automatic screen printing machine (1-12 colors) for containers: SL1488-1C (12C)
1. Machine features: the combination of nearly 30 years of experience in machine design. It combines the functions of feeding and discharging, surface treatment, screen printing and UV curing. Linear combination of modular structure, can realize up to 12 colors of integrated production line. Precise design and manufacturing can realize electromechanical synchronization, high degree of automation, man-machine dialogue operation is simple and convenient, in and out of the material and the host safety protection appearance is novel, the new transmission design makes the machine run stably and quickly, easy to transfer in different shapes of containers, easy to operate and save manpower. The technology is in the leading position in China.
2. Applicable industries: cosmetics, daily-use chemicals, food, drugs, health care products, baby products, automotive products, cleaning products, alcohol, glass glue, toys, sporting goods and so on.
3. Scope of application: This machine is suitable for single-color or multi-color screen printing on the surface of containers of various shapes, such as round, oval, square and complex shapes. Container materials include plastic, glass and metal. Containers include cans, bottles, cups, lids and hard tubes.
4. Main functions Speed drive feeding function; robot vacuum directional feeding function; speed control stepper motor drive bottle surface treatment function; electrostatic dust removal function; flame surface treatment function; pre-positioning function; pressure-adjustable inflatable printing function inside the container; automatic screen printing function; motorized printing head lifting and lowering function for easy screen loading and unloading; high-intensity U.S. UV lamp curing function (LED-UV curing optional) High-intensity UV lamp curing function (optional LED-UV curing function); speed-adjustable motor rotation function when the cylindrical container passes through the UV; robotic vacuum unloading function; unloading speed-controlled conveying function
