300*250mm 100pcs/Min Fully Automatic Silk Screen Printing Machine Multicolor
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SL1888 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | TT or LC |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Stations: | 1-12 |
|---|---|---|---|
| Plate Type: | Screen Printer | After-sales Service: | Video Or On-line |
| Printed Colors: | 1 To 12, Can Be Customized | Brand: | Senny Or OEM |
| Highlight: | 300x250mm fully automatic silk screen printing machine,100pcs/min fully automatic silk screen printing machine,100pcs/min multicolor screen printing machine |
||
Product Description

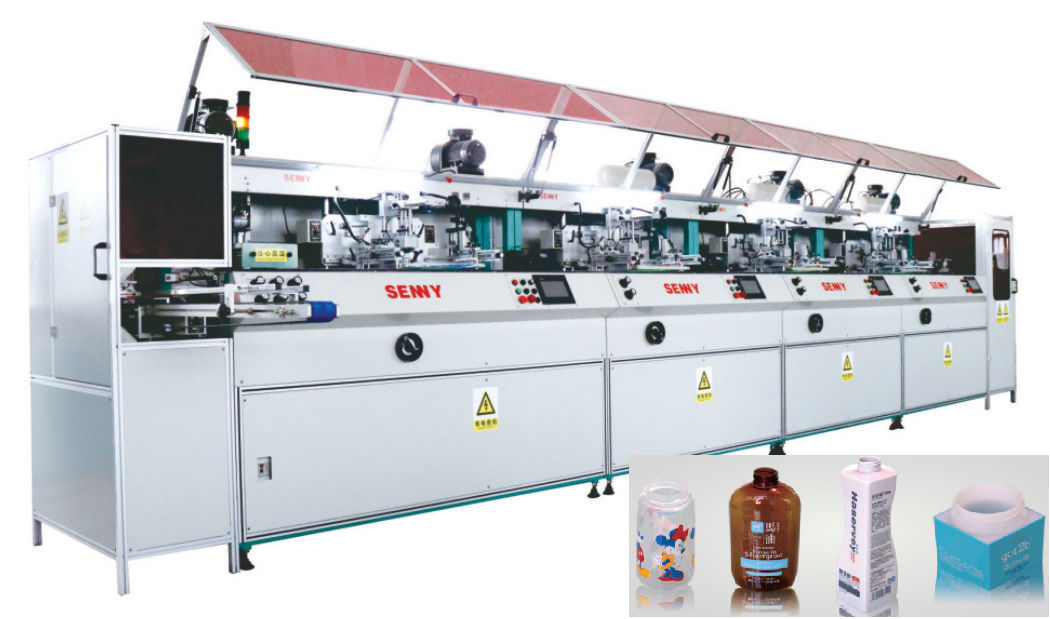

Multicolor Fully Automatic Silk Screen Printing Machine For Cylindrical/Elliptical/Square Shapes Bottles And Jars
SAFE EFFIENCY INNOVATIVE
* SLS1888 Servo-driven automatic machine for silk-screen printing of containers in plastic or other materials, having a circular, elliptical, square or rectangular section with centered or off-center neck,and it is easy for changing different shapes on printing section.
* Shape changeover: 30minutes for each machine,from cylindrical format to elliptical or flat format, can print all around in 360 degree.
* Linear unit structure combination: option of adding up to a total of eight in-line colors .
* The machine is operated by PLC and touch panel,which is easy to operate with excellent warning system.
* In-feeding parts includes:in-feeding belt and machine hand for side-selection.
* The host unit of the machine side-selection driven by servo motor,rotation for dust-removal of round container and flame treatment.
* Flame treatment for round,elliptical and rectangle container
* Device for pre-positioning
* Second time positioning for printing.
* Electronic lift for squeegee.
* UV curing by rotating round container driven by stepper motor.
* Electronic UV system: device for adjusting light freely(LED UV curing system can be as a replacement)
* Elliptical and square container side-selection for auxiliary machine section
* Output parts:Machine hand for container standing up and belt
* Conform to CE standard.
Technical Specifications:
| Max. printing area | L300 x W250mm |
| Cylindrical container diameter | Φ20-Φ120mm |
| Square or Oval product diameter | Φ20-Φ100mm |
| Width elliptical or flat container | 20-130mm |
| Container height | 50-300mm |
| Max. printing speed | Up to 6000pcs/hr |
SLS1888 can be configurated with Plasma Treating system, labelling system, hot-stamping system or UV-LED system as customer's specific demands.
Printing samples
