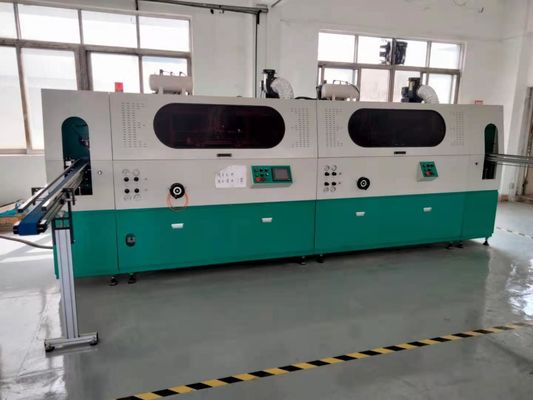

Glass Metal Applicable Fully Automatic Screen Printing Machine 85pcs/min
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL1288 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Printed Colors: | 1-12 Colors | Plate Type: | Screen Printer With Hot Stamping |
|---|---|---|---|
| Printing Durability: | High Durability | Warranty: | 1 Year |
| Automatic Grade: | Automatic | Stations: | 1-12 |
| Highlight: | Glass Metal Screen Printing Machine,85pcs/min Screen Printing Machine,Glass Fully Automatic Screen Printing Machine |
||
Product Description
Plastic/Glass/Metal Applicable Fully Automatic Screen Printing Machine For Jars/Bottles/Cups/Caps/Hard Tube
1. Machine features: the combination of nearly 30 years of experience in machine design. It combines the functions of feeding and discharging, surface treatment, screen printing and UV curing. Linear combination of modular structure, can realize up to 12 colors of integrated production line. Precise design and manufacture can realize electromechanical synchronization, high degree of automation, simple and convenient operation of man-machine dialogue, inlet and outlet material and host safety protection is brand-new, the whole machine runs stably and quickly, easy to transfer in different shapes of containers, easy to operate and save manpower. This technology is in the leading position in China.
2. Applicable industries: cosmetics, daily-use chemicals, food, drugs, health care products, baby products, automotive products, cleaning products, alcohol, glass glue, toys, sporting goods and so on.
3. Scope of application: This machine is suitable for single-color or multi-color screen printing on the surface of containers of various shapes, such as round, oval, square and complex shapes and so on. Container materials include plastic, glass and metal and so on. Containers include cans, bottles, cups, LIDS and rigid tubes and so on.
4, the main function: speed drive feeding function; feeding direction selection function; speed control stepping motor drive round bottle surface treatment function; electrostatic dust removal function; flame surface treatment function; pre-positioning function; adjustable pressure charging function, automatic screen printing function; electric printing head lifting and lowering function; stepless adjustable light curing function (can be modified LED-UV); manipulator unloading function; unloading speed control conveyance Function.
Technical Specifications:
| Machine running speed | 0-85pcs/min (printing speed varies from bottles to bottles) |
| Product height | 20-280mm |
| Round bottle diameter | 20-100mm |
| Flat bottle radius | 50-250mm |
| Flat bottle width | 20-100mm |
| Maximum printing area | length 250* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 4-wire 380V 50/60Hz |
| Rated power | 6KW |
Optional congurated device:
1. Screen printing and labeling machine
a. Screen printing and labeling head interchangeable function, such as 2-color screen printing and labeling machine SL1288-2CT
b. Screen printing and labeling functions, such as single color screen printing and labeling machine SL1288-1CT
c. Labeling machines, e.g. Double Head Labeler SL1288-2T
2. Screen printing and hot stamping machine
a. Screen printing and hot stamping interchangeable functions, such as 2-color screen printing and hot stamping machine SL1288-2CH
b. Screen printing and hot stamping functions, e.g. 1-color screen printing and hot stamping machine SL1288-1CH
c. Foil stamping machines, e.g. Double Head Foil Stamping Machine SL1288-2H

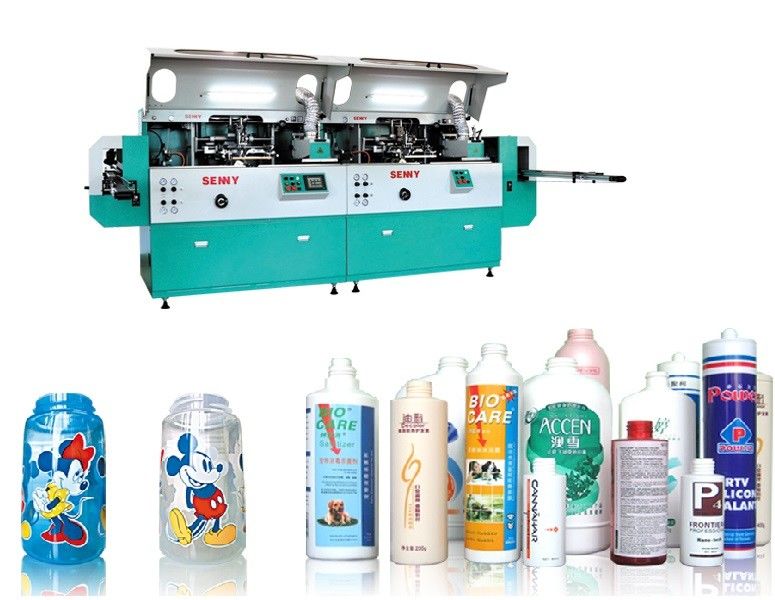

Printing samples
Factory Office VIew:
Printing samples
Workshop
