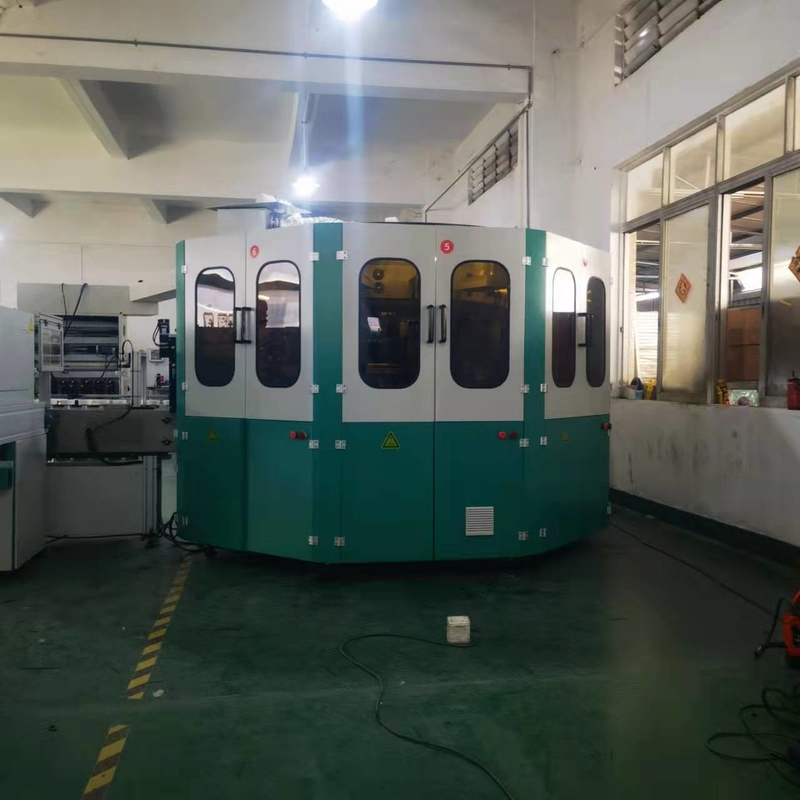

Servo Driven Fully Automatic Screen Printing Machine Rotary
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS1039-DR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | Two Months |
| Payment Terms: | T/T |
| Supply Ability: | 15pcs/month |
|
Detail Information |
|||
| Printed Colors: | 1-3 Colors | Condition: | New |
|---|---|---|---|
| Printing Durability: | High Durability | Warranty: | 1 Year |
| Automatic Grade: | Automatic | Control System: | Servo-Driven |
| Highlight: | Fully Automatic Screen Printing Machine Rotary,Rotary Fully Automatic Screen Printing Machine,Servo Driven fully automatic printing machine |
||
Product Description
Servo-Driven Fully Automatic Screen Printing Machine Rotary Less Compact Screen Printer With User Friendly Interface
The main advantages of rotary SRS1039-D:
1. Through the visual system, you can separate the qualified and non-qualified products to save labor.
2. User-friendly interface, easy to operate for new operators.
3. Memory function saves the main parameters for easy changeover and requires fewer tools.
4. Low consumption, LED UV lamps can be used, which is conducive to the health of operators and managers.
5. Compact design, suitable for small spaces.
Fully automated screen printing machine driven by CNC servo motors can print UV inks of different colors on plastic, glass, metal bottles, cans and lids of various shapes (e.g. round, oval, triangular, square, pentagonal, etc.) in 360 degrees.

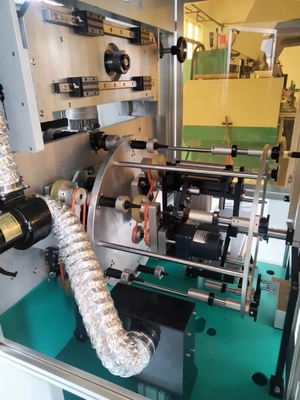

Bottles are rotated to different workstations in one fixture to complete the functions of feeding, color registration, surface treatment, multi-color printing, UV curing and discharging. High printing precision, small distance from printing pattern to bottle bottom, not easy to damage the product surface.
UV curing can be partially or fully utilized with LED-UV curing systems to save energy.
The screen printing and UV curing station can be eliminated and a hot stamping system can be installed, allowing screen printing and hot stamping to be accomplished at the same time.
The last screen printing and UV curing station is canceled, and a visual inspection system is installed for finished products, separating qualified and non-qualified products after discharging.
The machine is equipped with a remote management function, which allows customers to remotely understand or solve machine malfunctions and technical problems, as long as the network is connected to any place.
Parameters
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing Stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Complex shapes(20-100mm) | Cylindrical(20-100mm) | ||||||
| Printing Speed | Up to 45pcs/min | |||||||
| Max Printing Area | L250mm X W160mm | |||||||
| Product Height | 250mm | |||||||
| Air Pressure | 6-7 bar | |||||||
| Power | 380v 50/60HZ | |||||||
What's the steps of screen printing?
1. Surface treatment, currently we use flame treatment, but without PET material. This not only improves ink adhesion, but also cleans the surface of dust and dirt, and eliminates static electricity that can cause ink spidering.
2. Screen printing is a highly specialized process for printing on flat and flexible plastic surfaces. Compatible with all types of plastics, this printing method produces bold, vibrant, robust and metallic colors that make your designs stand out.
3. UV curing or IR curing. This depends on the type of ink you use. Ultimately, UV and infrared curing are two unique applications that are ideal for shorter cure times. They are also both very energy efficient. Infrared ovens do not have special coating requirements like UV ovens. However, infrared ovens may not cure as fast as UV ovens.
