Modular Combined Structure Automatic Screen Printer Servo Driven UV Curing
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL1888 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Printed Colors: | 1-12 Colors | Plate Type: | Screen Printing Machine |
|---|---|---|---|
| Printing Durability: | High Durability | Automatic Grade: | Automatic |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | Modular Combined Structure Automatic Screen Printer,Servo Driven Automatic Screen Printer,UV Curing Automatic Screen Printer |
||
Product Description
Servo-Driven Fully Automatic Screen Printing Machine With Modular Combined Structure
In what areas will Senny Printing Machines be used?
Senny Printing Machines can be used used for containers of different shapes, sizes and materials in the food, cosmetic, household chemical and pharmaceutical industries.
The printer is suitable for plastic products of various shapes, such as round, oval, triangular and square; the product range includes bottles, jars, rigid tubes, etc.
The machine is modular, with each module including digitally controlled servo-driven screen printing and UV curing functions, and linear connections for up to an 8-color integrated production line.
The printing parameters are independently adjusted for each color, the printing function is digitized, and bottles of various shapes can be printed in 360°, and the machine is easy and quick to set up.
The equipment can be connected with hot stamping or labeling module to become a multifunctional printing line with screen printing plus hot stamping or labeling; it can also be connected with visual product inspection module after printing to replace manual inspection.
The feeding conveyor can be directly connected with the bottle making equipment, or connected with the automatic bottle trimming machine, instead of manual feeding; after the printing process, the discharging material can be connected with the bagging machine, saving labor.
Technical Specifications:
| Max. printing area | L300 x W250mm |
| Cylindrical container diameter | Φ20-Φ120mm |
| Square or Oval product diameter | Φ20-Φ100mm |
| Width elliptical or flat container | 20-130mm |
| Container height | 50-300mm |
| Max. printing speed | Up to 6000pcs/hr |
SAFE EFFIENCY INNOVATIVE
* SLS1888 servo-driven automatic machine for screen printing of containers of plastic or other materials with round, oval, square or rectangular cross sections, with centered or off-centered necks and easy change of different shapes in the printed cross section.
* Shape changeover: 30 minutes per machine, from cylindrical to oval or flat, with 360-degree printing.
* Linear unit structure combinations: up to 8 inline colors are available as options.
* Machines are PLC and touch screen operated for easy operation with an excellent warning system.
* Feeding components include: feeding belt and robot hand for side selection.
* Side-selection mainframe is driven by servo motor for rotary dedusting and flame treatment of round containers.
* Flame treatment for round, oval and rectangular containers.
* Pre-positioning device
* Secondary positioning device for printing.
* Electronic lifting device for squeegees

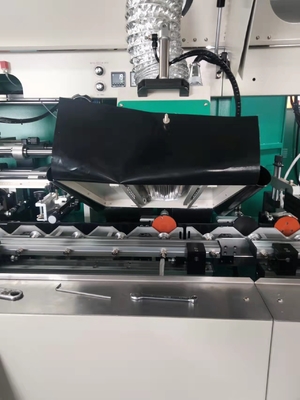

* UV curing by rotation of round containers driven by stepper motors.
* Electronic UV system: device with freely adjustable light (alternative to LED UV curing systems)
* Auxiliary machine part with optional oval and square container sides
* Output parts: robot hand and belt for standing up containers
* CE compliant.

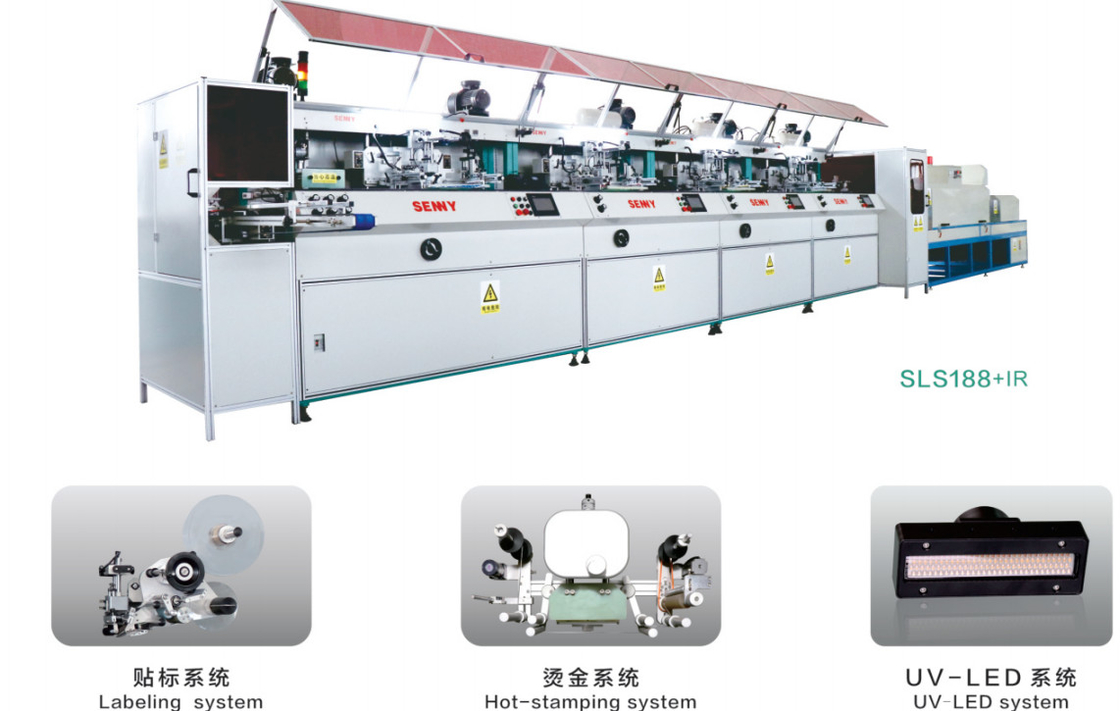

The SLS1888 can be configured with a plasma processing system, a labeling system, a hot stamping system or a UV-LED system, depending on the customer's specific requirements.
Printing samples
Workshop
