Gallon Plus Digital Automatic Screen Printer For Flats Or Cylinders
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL1788 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | Two Months |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Printed Colors: | 1-12 Colors | Brand: | Senny Or OEM |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printing Machine |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Highlight: | Gallon Plus Digital Automatic Screen Printer,Flats Digital Automatic Screen Printer,Cylinders Digital Automatic Screen Printer |
||
Product Description
Large (Gallon Plus) Screen Printer For Flats Or Cylinders Digital Screen Printing Automatic Machine
A special extra-large printer can also be ordered to print cylinders up to 7 inches in diameter.
The system usually does not have an automatic bottle feeder. Bottles are manually fed into a large, heavy-duty infeed conveyor and then automatically removed by a heavy-duty outfeed conveyor at right angles to the machine.
Speeds of up to 3,000 bottles per hour are possible, depending on the operator's bottle feeding capabilities.
By linking two machines together with a connecting conveyor, it is also possible to "Z" combine for up to 8-color printing.

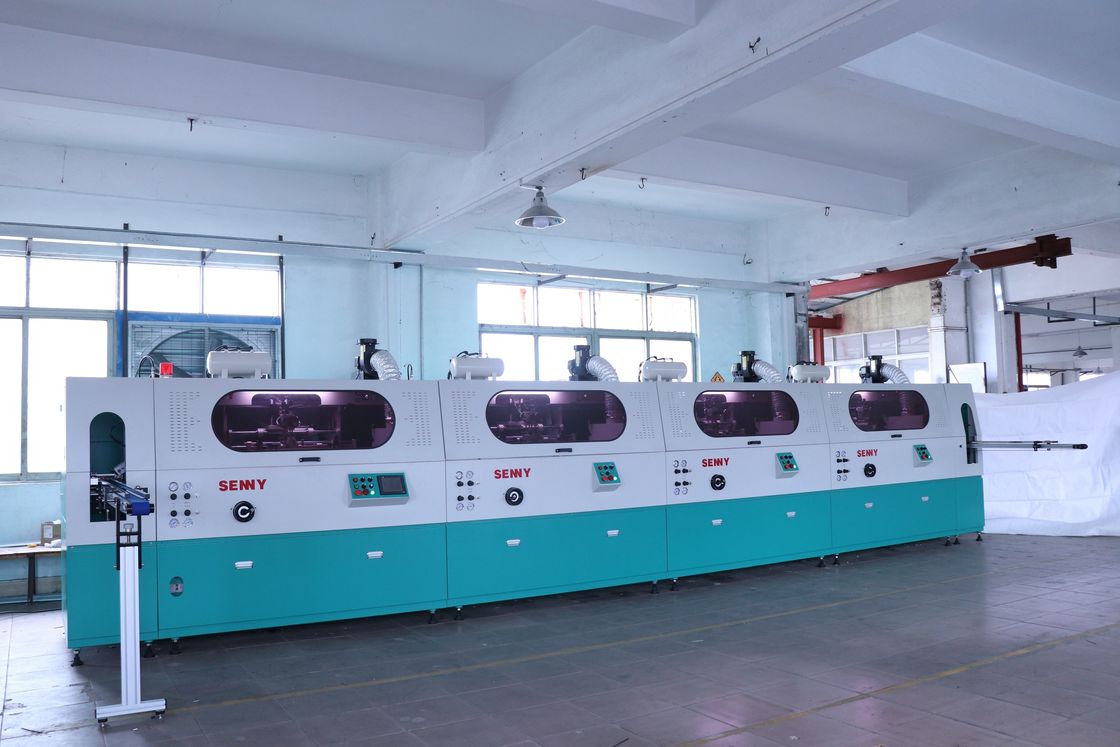

Fully automatic screen printing machine (1-12 colors) for containers: SL1788-1C (12C)
1. Machine features: the combination of nearly 30 years of experience in machine design. It combines the functions of feeding and discharging, surface treatment, screen printing and UV curing. Linear combination of modular structure, can achieve up to 12 colors of integrated production line. Precise design and manufacturing can realize electromechanical synchronization, high degree of automation, man-machine dialogue operation is simple and convenient, in and out of the material and the host safety protection appearance is novel, the new transmission design makes the machine run stably and quickly, easy to transfer in different shapes of containers, easy to operate and save manpower. The technology is in the leading position in China.
2. Applicable industries: cosmetics, daily chemicals, food, medicine, health care products, baby products, automotive products, cleaning products, alcohol, glass glue, toys, sporting goods and so on.
3. Scope of application: This machine is suitable for single-color or multi-color screen printing on the surface of containers of various shapes, such as round, oval, square and complex shapes. Container materials include plastic, glass and metal. Containers include cans, bottles, cups, lids and hard tubes, etc.
4. Main Functions Speed drive feeding function; robot vacuum directional feeding function; speed control stepping motor drive bottle surface treatment function; flame surface treatment function; pre-positioning function; pressure-adjustable inflatable printing function inside the container; automatic screen printing function; motorized printing head lifting and lowering function for easy loading and unloading of the screen; high-intensity U.S. UV lamp curing function (optional LED-UV curing function); cylindrical container through the UV when speed-adjustable motor rotation function; robot vacuum unloading function; unloading speed control conveying function. Cylindrical container through the UV speed adjustment motor rotation function; robot vacuum unloading function; unloading speed control conveyor function.
