5-30 Liter Round Bucket Automatic Screen Printer For Pails 12 Colors
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL700 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Printed Colors: | 1-12 Colors | Speed: | Up To 1000pcs/hr |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printing Machine |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Highlight: | Round Bucket Automatic Screen Printer,12 Colors Automatic Screen Printer,30 Liter Automatic Screen Printer |
||
Product Description

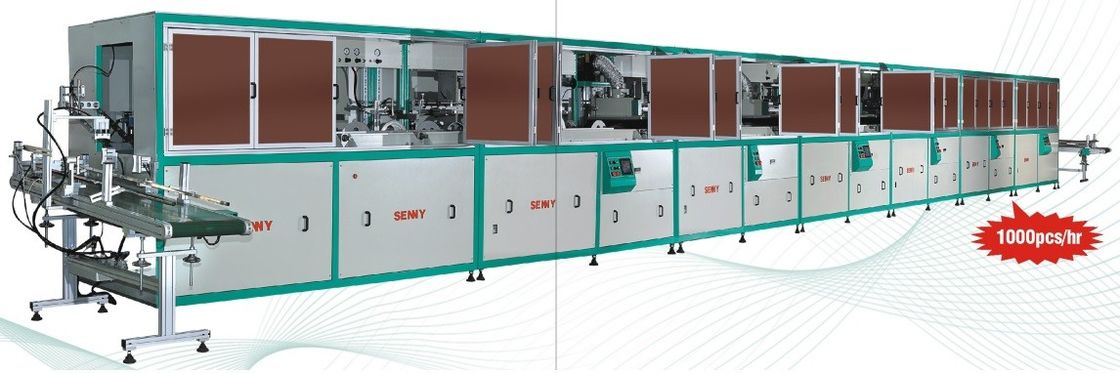

1 To 12 Color Automatic Screen Printing Machine For Pails, Can Be Used For 5~30 Liter, Round Bucket Screen Printer
Application:
This screen printing machine can screen print plastic drums from single color to multi-color in one step. It is designed for screen printing of large and round plastic containers, which are mainly used in chemical and food industries. The machine features a CAM screw-connection structure for greater efficiency, precision and versatility with integrated functionality. The ASP/B carriage is equipped with a user-friendly system that ensures easy adjustments and operation, as well as a mechanical feeder, a flame unit, a register system, a no-parts-no-press function, a UV curing system and an unloading device.
The SL700 printing system is only suitable for round (cylindrical) plastic drums with a volume of 5-30 liters, widely used in chemical and food packaging.
Technical Specifications:
| Model | SL700 |
| Printing area | L900XW250mm |
| Screen frame size | L1200XW400mm |
| Cylindrical container diameter | Φ160 - 350mm |
| Container height | 200-400mm |
| Max. printing speed | Up to 1000pcs/hr |
Features:
1. The innovative drive system is very smooth when passing through containers, easy to change between different types of buckets and easy to operate.
2. The machine can print up to 12 colors, each module machine is driven independently and synchronously, accurate color registration between colors, stable and reliable performance.
3. It adopts PLC control and touch screen display, and is equipped with various monitoring systems to ensure high-speed and stable operation of the machine.
4. According to the product characteristics, it can be equipped with automatic loading and unloading, positioning, flame treatment, dust removal, automatic color registration, no bottle without printing, UV curing system and other functions.
5. All the parts are from Germany, USA and Japan to ensure the quality and printing stability.
6. Machine can be customized according to special products.
Printing samples
