SGS Fully Automatic Screen Printing Machine Up To 4800pcs/hr
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL168 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Printed Colors: | 1-12 Colors | Speed: | Up To 4800pcs/hr |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printing Machine |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Highlight: | SGS Fully Automatic Screen Printing Machine,4800pcs/hr Screen Printing Machine,4800pcs/hr Fully Automatic Screen Printing Machine |
||
Product Description

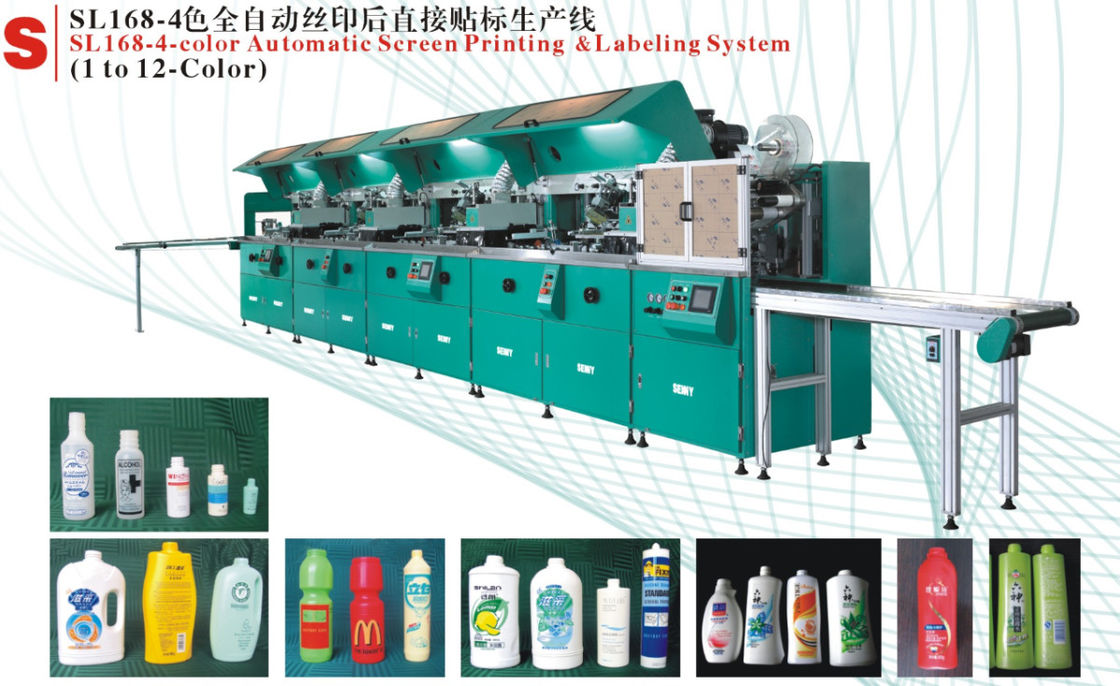

1-12 Colors Fully Automatic Screen Printing Machine With Labelling System Multifunctional And Verstile Screen Printer
Product features:
* SL168 automatic printing machine for screen printing of containers in plastic or other materials with round, oval, square or rectangular cross sections and centered or off-center necks.
* Shape changeover: From cylindrical to oval or flat shapes in just 30 minutes per machine.
* Linear unit structure combination: Can operate as a maximum 12-color printing system, with each color as a separate control system that can be split to match the number of colors needed and matched to the labeling system.
* The machine is operated by PLC and touch screen for easy operation with good warning system.
* Feeding components include: Feeding belt and robot hand for side selection.
* Flaming of round, oval and square containers
* Pre-positioning device
* Secondary positioning device for printing.
* Electronic lifting device for squeegees
* UV curing by rotation of round containers driven by stepper motors.
* Electronic UV system: 3-stage light adjustment device (alternative to LED UV curing system)
* Lateral selection of oval and square containers in the auxiliary section
* Output belt
Technical Specifications:
| Max production speed | 4800pcs/hr |
| Min. Diameter of cylindrical container | 20mm |
| Max.Diameter of cylindrical container | 100mm |
| Min. Radius of elliptical container | 30mm |
| Max. Radius of elliptical container | 250mm |
| Max. Width or elliptical and flat container | 120mm |
| Min. Length of elliptical and flat container | 50mm |
| Max. Length of elliptical and flat container | 280mm |
| Max. printing width | 200mm |
| Max. printing length | 300mm |
Designed for cylindrical, oval and flat bottles, the machine is widely used for chemical and food packaging.
