UV Curing Jars And Caps One Color Screen Printer Machine Printing Speed 60pcs/Min
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SR812 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Printed Colors: | 1 Color | Speed: | Up To 60pcs/minute |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printing Machine |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Highlight: | One Color Screen Printer Machine,60pcs/Min Screen Printer Machine,UV Curing Jars Screen Printer Machine |
||
Product Description

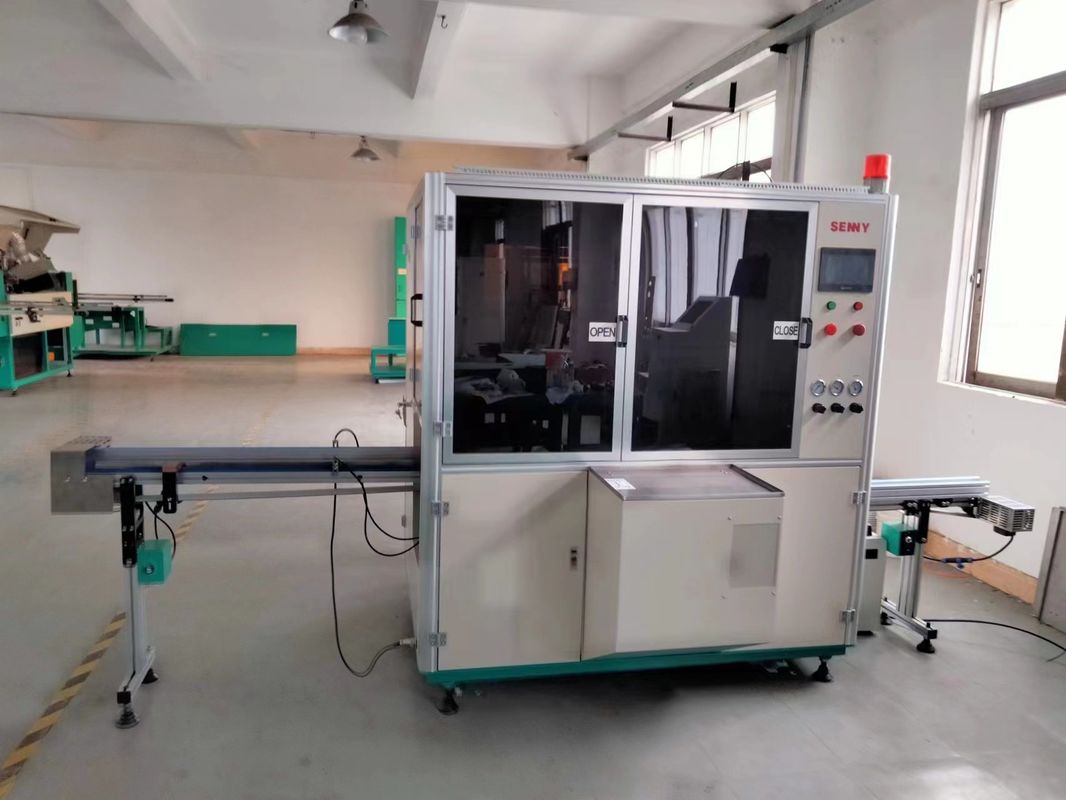

LED UV Curing Jars and Caps 1-Color Screen Printer Machine Printing Speed 60pcs/min
Round Jar & Cap printing machine.pdf
Machine Application:
This machine is a new type of screen printing machine developed with the concept of "simple and efficient". It is designed for printing round, oval and square plastic containers, ordinary glass bottles and other special products. It can be freely selected from single color to multi-color and can be freely combined. The whole machine adopts mechanical synchronization design with functions of surface treatment, automatic alignment, no product no printing, screen printing, LED curing, etc. to meet the diversity of the current product printing process, and optional full-automatic feeding system is also available.
It has the advantages of high degree of automation, easy to use, high precision, high reliability, low price, very simple operation and maintenance. It is widely used in cosmetic industry, alcohol industry, home decoration industry, food industry and so on.
Technical specification:
| Max. speed | 3600Pcs/Hour |
| Max. printing area (L × W) | 300mm×100mm |
| Printing product diameter | Φ20~Φ100mm |
| Printing product height | 10~100mm |
| Power requirements (one) | 440V 3 P 60Hz 5KVA |
| Compressed air pressure | 6-7Bar 100L/Min |
| Gas Pressure | 0.8-2Bar |
| Main motor power | 0.75KVA |
| Gearbox ratio | 1:20 |
| LED lamp power | 1KVA |
| Machine size (L x W x H) | 1600mm×1200mm×1800mm |
| Approximate weight (including conveyor) | 1100kg |
