1 Colour Screen Printing Machine , 4200pcs/H Fully Auto Screen Printer
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL175-BT&UV200F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Printed Colors: | 1 Color | Usage: | Flat Buckets |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printing Machine |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Highlight: | 1 Colour Fully Auto Screen Printer,4200pcs/H Screen Printing Machine,4200pcs/H Fully Auto Screen Printer |
||
Product Description

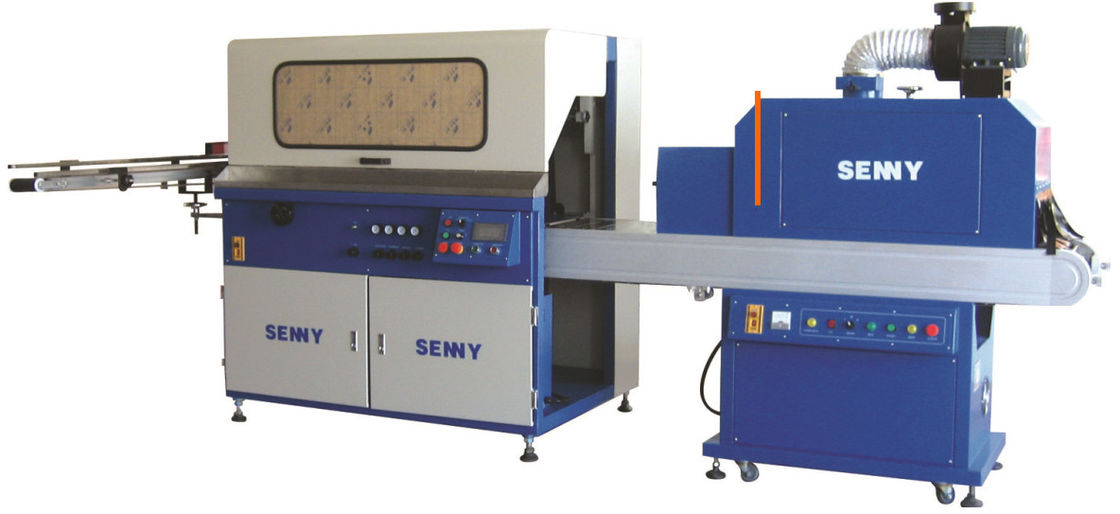

Single Color Fully Automatic Silk Screen Printing Machine For Square Large Buckets
Technical Specification:
SL175-BT
| Max. printing area | 200×250mm |
| Max. screen frame size | 550×350mm |
| Min. square bottle radius | R50mm |
| Max. square bottle radius | R250mm |
| Min. bottle height | 60mm |
| Max. bottle height | 300mm |
| Max. square bottle height | 160mm |
| Max. printing speed | 4200pcs/hr |
| Power voltage | 220V 50Hz |
| Power consumption | 1KW |
| Air pressure | 4-6 kg/cm2 |
| Machine weight | 800KG |
| Dimensions | L2000×B2100×H1700mm |
UV200F
| Power voltage | 380V 50Hz |
| Power consumption | 4KW |
| Air pressure | 4-6 kg/cm2 |
| Machine weight | 300KG |
| Dimension | L2100×B660×H1700mm |
Applications:
It is mainly used for single-color screen printing on flat plastic drums for wider and longer detergents, cosmetics, pharmaceuticals, foodstuffs and so on.
Features:
1. Using Japan Panasonic PLC programmable controller and easy-to-use touch screen to ensure simple and stable machine operation.
2. Machine speed can be regulated according to printing needs to meet different printing requirements.
3. The machines' feeding conveyor belt is made of anti-abrasion belt, which can protect the surface of bottles from abrasion.
4. The flame surface treatment has automatic continuous flame spraying function, can satisfy different printing speeds, and is equipped with safety anti-scald device.
5. The driving roller adopts split independent standard roller, convenient and quick maintenance and replacement, which greatly saves the maintenance cost.
6. Equipped with container inflation and pressure adjustment function which ensures fine bottle thickness printing quality.
7. The squeegee pressure is adjustable, and the squeegee part is equipped with X, y, Z, z-r direction and angle micro-adjustment function.
8. The machine has the function of no bottle no printing, to meet the customer's high speed printing requirements.
9. Independent UV curing oven is easy to detect the waste before curing and reduce the waste rate.
