45pcs/Min 4 Stations 60Hz Fully Automatic Screen Printing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS1249-DR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Station: | 4 Stations | Printed Colors: | 4 Colors |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Highlight: | 60Hz Fully Automatic Screen Printing Machine,45pcs/Min fully automatic printing machine,4 Stations fully automatic printing machine |
||
Product Description
Cylindrical Bottles, Caps, Jars Fully Automatic Screen Printing Machine High Speed Up To 45pcs Per Minite
Technical Specifications
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Irregular shapes 20-100mm | cylindrical 20-100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |

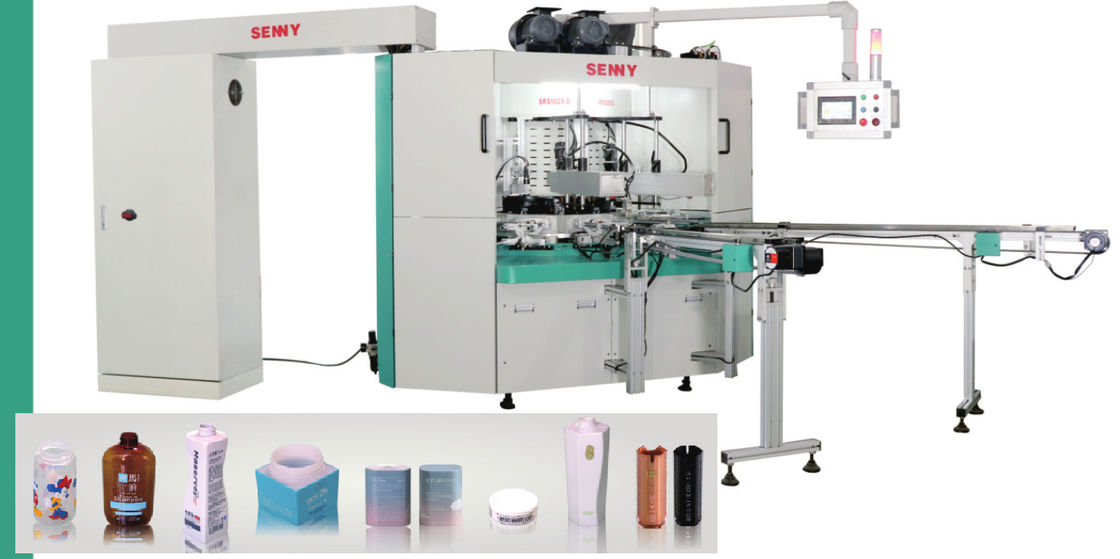

This machine is a multifunctional rotary multi-color screen printing machine. It is mainly used for printing patterns and texts on irregular glass bottles, glass tubes, wine bottle caps, tube products, lipsticks, flat surfaces and so on. It is characterized by simple operation, accurate positioning, high degree of automation and fast printing speed.
Features:
1. Few tools, simple operation, low maintenance and high accuracy. High accuracy of color to color register.
2. Controlled by PLC and touch screen, equipped with various monitoring systems to ensure the stability and safety of the machine when running at high speed.
3. According to the product characteristics, the machine can be equipped with various functions, such as
Plasma processing system
CCD fixing system
Hot stamping system
UV LED system
4. all key components are imported from Germany, USA and Japan to ensure machine quality and printing stability.
5. Support Chinese, English and Spanish languages. In addition, we can also write other languages in PLS according to your requirements.
6. Machine can be customized according to special products.
Printing samples
Optional Configuration
Exhibition:
Shipping
