1 Color 5000pcs/Hour Fully Automatic Screen Printing Machine 250x150mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS818 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Stations: | 1 | Printed Color: | 1 Color |
|---|---|---|---|
| Printing Durability: | High Durability | Speed: | Up To 5000pcs/hour |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Highlight: | 250x150mm Fully Automatic Screen Printing Machine,1 Color fully automatic printing machine,5000pcs/Hour fully automatic printing machine |
||
Product Description

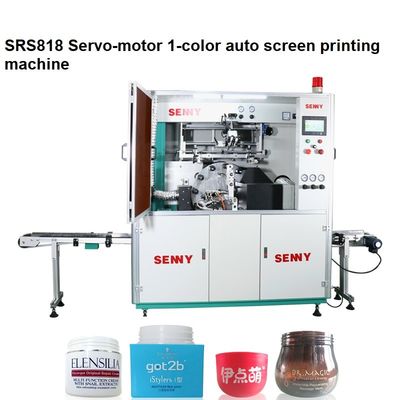

Servo Motor Controlled Fully Automatic Screen Printing Machine For Single Color Max Printing Speed Up To 5000pcs/Hr

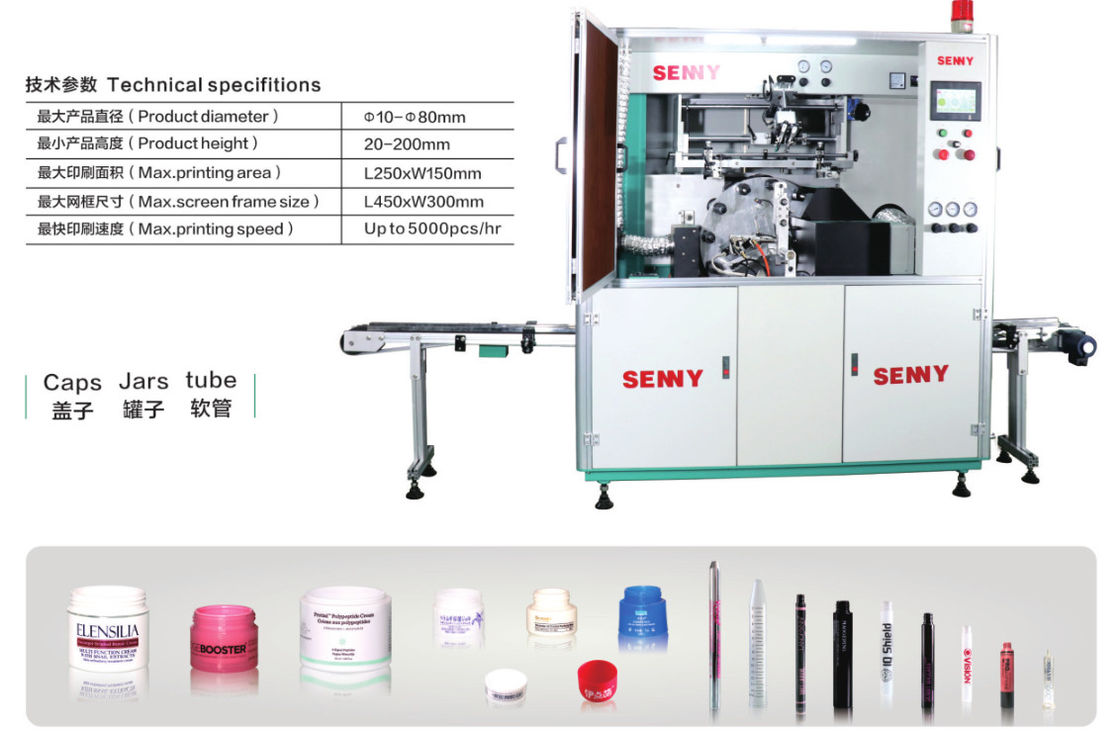

Technical specification:
| Model | SRS818 | SRS818-S2 |
| Product diameter | Φ10 - Φ80mm | Φ10 - Φ80mm |
| Product heigth | 20 - 200mm | 20 - 200mm |
| Max. printing area | L250XW150mm | L300XW150mm |
| Max. screen frame size | L450XW300mm | L500XW300mm |
| Max. printing speed | Up to 5000pcs/hr | Up to 5000pcs/hr |
Product Features:
1. Automatic screen printing machine for plastic soft tubes, round cans and round lids with automatic feeding function, electrostatic dust removal function, flame treatment function, servo-driven register function, automatic printing and UV curing function. SRS818 saves a lot of manpower for changing different products, shortens the adjustment time, and makes the work easier.
2. SRS818 can make different types of machines according to requirements, such as inline printing or clamp printing.
3. Servo-driven with color-coded pre-register function or servo-driven visual pre-register function is optional.
4. With touch screen for easy man-machine dialog and complete warning system.
5. All adopt servo-driven screen printing machine with highest precision.
6. All fixtures are installed with servo motor rotation (no gears required, easy and fast product change)
