380V One Color Screen Printing Machine , 60Hz 2 Station Screen Printing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS829-D1CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Station: | 2 Stations | Printed Colors: | 1 Color + 1 Color Hot Stamping |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Highlight: | 2 Station Screen Printing Machine,60Hz Screen Printing Machine,380V Screen Printing Machine |
||
Product Description
Hot Stamping Irregular Shapes Bottle/Caps/Jars Fully Automatic Screen Printing Machine Operates 360 Degree
Catalog 04_compressed.pdf

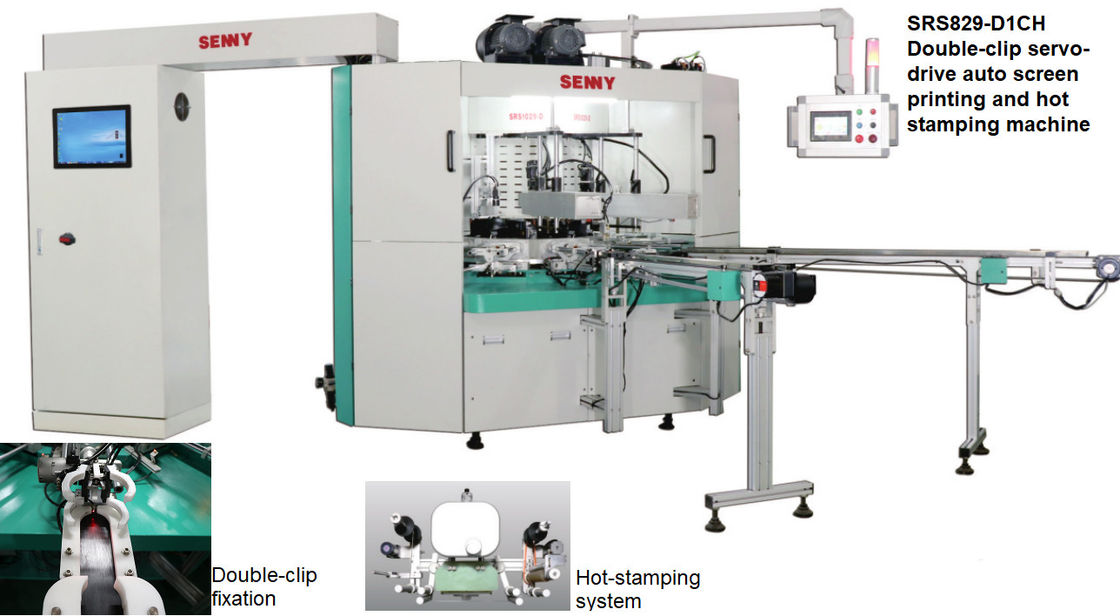

The SRS829-D1CH is designed for screen printing and hot stamping of oval/square/irregular shaped bottles, lids and jars at print speeds up to 45 pieces per minute.

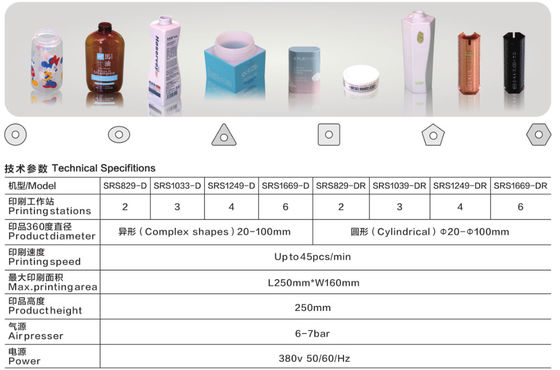

Technical specification
| Model | SRS829-D1CH |
| Print color | 1-color screen print + 1-color hot stamping |
| Product stations | 2 |
| Product diameter | irregular shape---20~100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air pressure | 6-7 bar |
| Power | 380v 50/60Hz |
Features:
The machine has many features and functions, please refer to the following:
1). The machine can be designed as a single-color screen printing and single-color foil stamping structure, realizing both functions in one machine.
2). The innovative drive system is very stable when passing bottles, easy to change between different types of products and easy to operate.
3). The machine adopts world-renowned PLC control and touch screen display, and is equipped with various monitoring systems to ensure the stability and safety of the machine at high speed.
4). According to the product characteristics, the machine can be equipped with automatic loading and unloading, positioning, no bottle no printing and other functions.
5). All key components are imported from Germany, USA and Japan to ensure machine quality and printing stability.
6). Support three languages: Chinese, English and Spanish. In addition, we can also write other languages in PLS according to customer's language.
7). We can customize the machine according to special products.
8). Configurations can be freely selected, such as plasma processing system, CCD fixing system, hot stamping system, UV-LED system.
Feeding device:
Optional configuration:
About screen printing machine, we can teach you:
1. How to make the screen frame
2. How to choose the screen density according to the product
3. How to make squeegees and blades
4. Ink mixing
5. Installation of screen printing machine
6. Maintenance of screen printing machine
Sample Exhibition
