Single Colour Screen Printing Machine , 4200pcs/Hr Fully Auto Screen Printer
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL175-BT&UV200F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Usage: | Flat Buckets | Printed Colors: | 1 Color |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Highlight: | 4200pcs/Hr Screen Printing Machine,Fully Auto Screen Printing Machine,Single Colour Screen Printing Machine |
||
Product Description

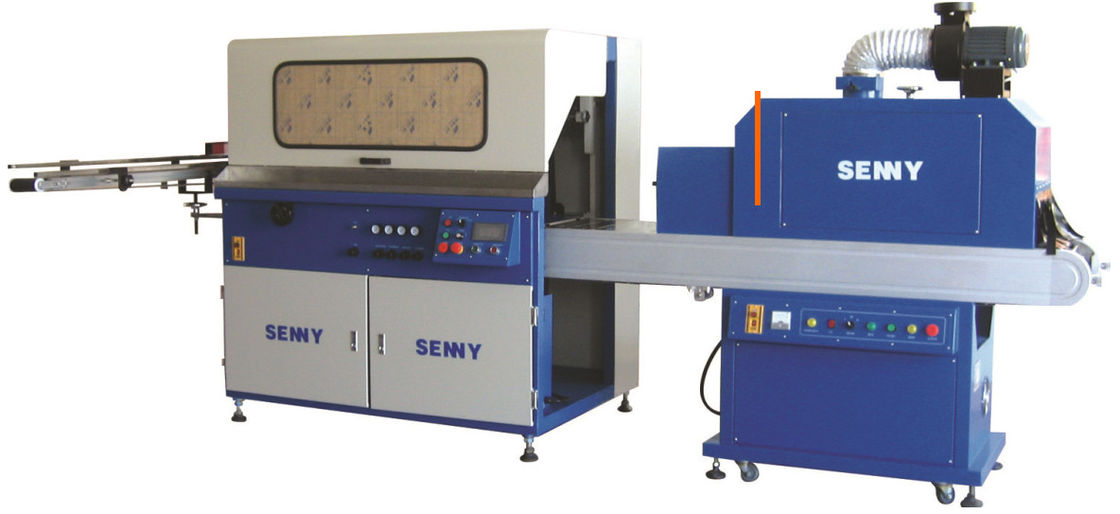

Single Color Fully Automatic Silk Screen Printing Machine For Square Large Buckets
Technical Specification:
SL175-BT
| Max. printing area | 200×250mm |
| Max. screen frame size | 550×350mm |
| Min. square bottle radius | R50mm |
| Max. square bottle radius | R250mm |
| Min. bottle height | 60mm |
| Max. bottle height | 300mm |
| Max. square bottle height | 160mm |
| Max. printing speed | 4200pcs/hr |
| Power voltage | 220V 50Hz |
| Power consumption | 1KW |
| Air pressure | 4-6 kg/cm2 |
| Machine weight | 800KG |
| Dimensions | L2000×B2100×H1700mm |
UV200F
| Power voltage | 380V 50Hz |
| Power consumption | 4KW |
| Air pressure | 4-6 kg/cm2 |
| Machine weight | 300KG |
| Dimension | L2100×B660×H1700mm |
Applications:
It is mainly used for one-color screen printing on flat plastic drums for wider and longer detergents, cosmetics, pharmaceuticals, foodstuffs and so on.
Features:
1. Adopts Japan Panasonic PLC programmable controller and easy-to-use touch screen, which makes the machine operation easy and stable.
2. Machine speed can be adjusted according to printing needs to meet different printing requirements.
3. The feeding conveyor of the machine adopts anti-abrasion belt, which can protect the surface of bottles from abrasion.
4. The flame surface treatment has automatic continuous flame spraying function, which can meet different printing speeds, and is equipped with safety anti-tempering device.
5. The drive roller adopts split independent standard roller, which is easy and quick to repair and replace, and greatly saves the maintenance cost.
6. Equipped with container inflation and pressure adjustment function to ensure fine bottle thickness printing quality.
7. Squeegee pressure is adjustable, and the squeegee part has the function of X, y, Z, z-r direction and angle micro-adjustment.
8. The machine has the function of no bottle no printing, which can meet the customer's high-speed printing requirements.
9. Independent UV curing oven is easy to detect the waste before curing and reduce the waste rate.
Dongguan Senny Printing Equipment Co., Ltd was founded in the year of 2004, and registered HongKong Senny Holding Co., Ltd in 2013. We have a great engineering team, who has engaged in mechnical & electrical automachine designing, parts processing, equipment assembly and debugging for more than 20 years. To provide high-quality products and services, we have a number of presision CNC and other processing equipment. All machines are made of world brand electrical components and materials.
With years of development, Senny can provide premium quality automatic screen-printing machine, labelling machine, pad printing machine, hot-stamping machine and other printing packaging and services according to customers' special products and demands.
