CE 2400pcs/Hr Fully Automatic Screen Printing Machine For Glass Bottle
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SC1524 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Stations: | 1 | Printed Colors: | 1 Colors |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Highlight: | Automatic Glass Bottle Screen Printing Machine,2400pcs/Hr Screen Printing Machine,CE Fully Automatic Screen Printing Machine |
||
Product Description

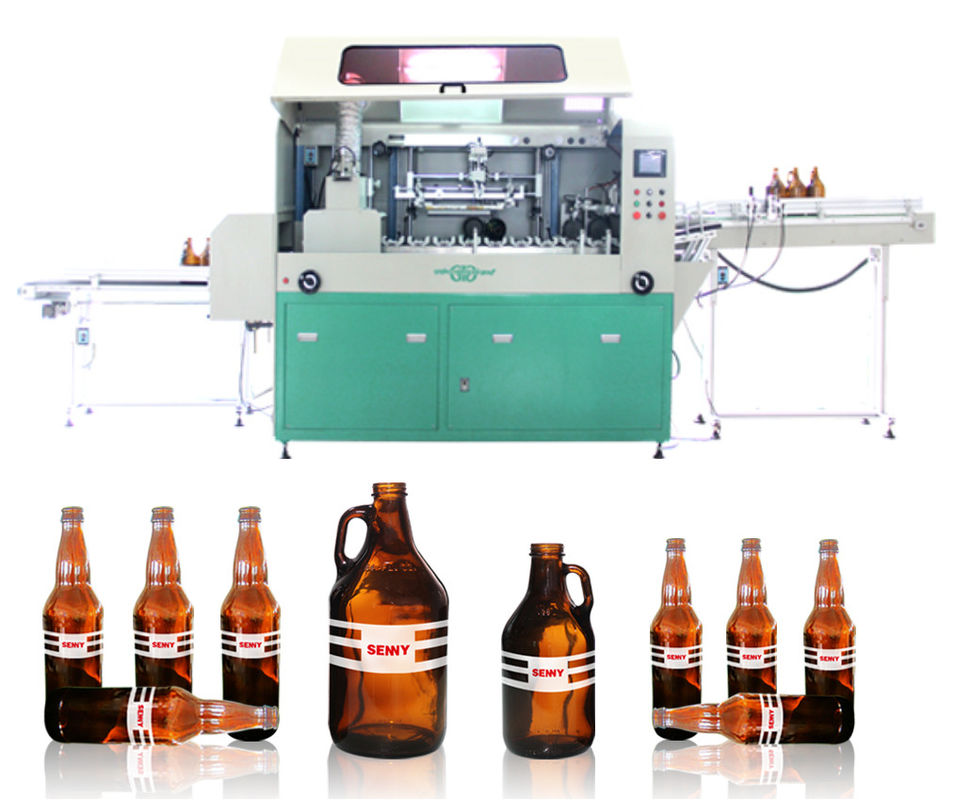

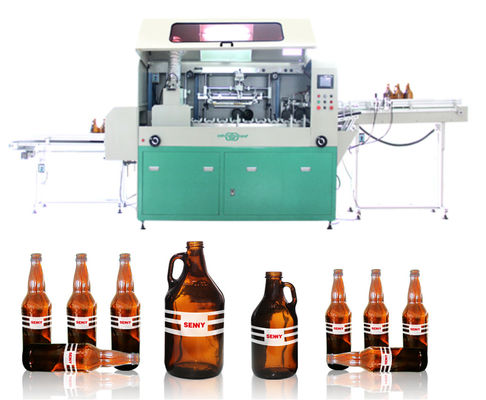

Fully Automatic Screen Printing Chain Machine for Liqour / Wine / Beer Glass Bottle and oil filter
Application:
The SC1524 is designed for one-color screen printing on a variety of glass containers such as wine bottles, beer bottles, beverage bottles, glasses, goblets and oil filters. It can also be designed for three-color or four-color printing as required. It is widely used in domestic and global markets. The project has small investment and quick return. Therefore, it is accepted by many companies.
Features:
1. It uses a very simple technique to solve the problem of register without locating points. The key technique is to print with hot-melted, high-temperature glass ink and then cauterize it in a high-temperature oven so that the ink becomes one with the glass. The image is firm and the bottle can be washed repeatedly to prevent environmental pollution and save cost.
2. Innovative transmission system is very stable in transferring bottles, easy to change between different types of bottles and easy to operate.
3. Adopting PLC control and touch screen display, equipped with all kinds of monitoring system to ensure high speed and stable operation of the machine.
4. According to the product characteristics, the machine can be equipped with various functions such as automatic loading and unloading, no bottle no printing and so on.
5. All parts come from Germany, USA and Japan to ensure the machine quality and printing stability.
6. Support Chinese, English and Spanish languages.
7. Machine can be customized according to special products.
Main Components:
- Standing feeding belt
- Flat conversion feeding mechanism
- Divider driving start and stop
- Chain and v-plate conveying products
- Automatic screen printing
- High energy UV curing
- Discharging conversion standing belt
- Standing discharging conveyor belt, which can be connected with the production line.
Technical Specifications:
We designed 2 different machines SC128 and SC1524 according to cylindrical container's diameter and height and printing speed:
| Model | SC128 | SC1524 |
| Cylindrical container diameter | Φ30 - Φ100mm | Φ30 - Φ130mm |
| Container height | 50 - 300mm | 50 - 350mm |
| Max. printing speed | Up to 3000pcs/hr | Up to 2400pcs/hr |

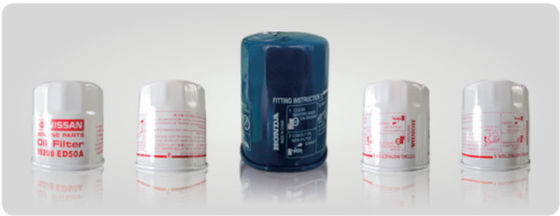

Printing samples
Exihibition Show
