Hot Stamping LED UV Lamp Tube Screen Printing Machine With Visual System
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL1388 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | Two monthes |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Automatic Grade: | Automatic | Stations: | 1-12 |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Brand: | Senny Or OEM | Printed Colors: | 1-12 Colors |
| Highlight: | Hot Stamping Tube Screen Printing Machine,Visual System Tube Screen Printing Machine |
||
Product Description

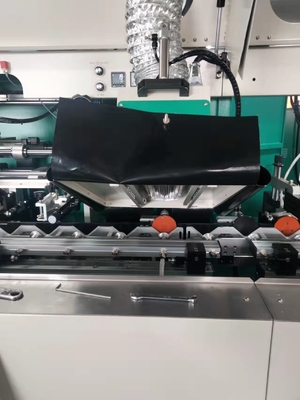

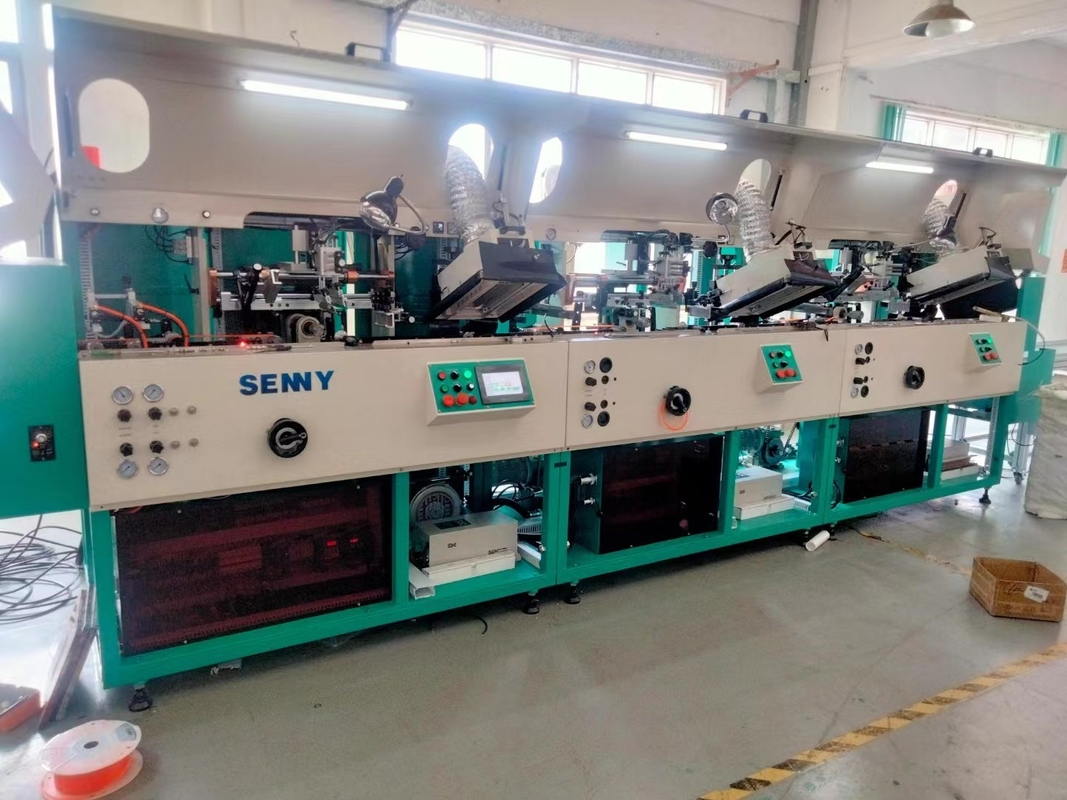

Hot Stamping LED UV Lamp Tube Screen Printing Machine With Visual System
LED UV Lamp Tube Screen Printing Machine Low Consumption Screen Printing Process With Visual System
BOTTLE AUTOMATIC SCREEN PRINTING MACHINE
- Model SL1266-1366 are suitable for printing graphics and text in various colors on the surface of round plastic bottles, jars, ect. The machine is easy to operate and fast to changeover.
- The machine is modular and can be connected linearly to achieve an integrated production line of up to 8 colors.
- Model SL1288-1388-1788 are suitable for printing graphics and text in various colors on the surfaces of round, oval, square and other complex shapes of plastic bottles and cans.
- The machine has a modular construction, with each module including screen printing and UV curing functions, and linear connections for up to 8-color integrated production lines.
- The machine integrates feeding and discharging, surface treatment, screen printing and UV curing.
- The machine can be connected to a foil stamping or labeling module for a multifunctional printing line with screen printing plus foil stamping or labeling, or to a visual product inspection module after printing to replace manual inspection.
- Bottle feeding conveyor can be directly connected with bottle making equipment or with automatic bottle trimmer to replace manual bottle feeding. After the printing process, the discharge can be connected to the bagging machine to save labor.
Technical Spaecifitions
| Model | SL1266 | SL1288 | SL1366 | SL1388 | SL1788 |
| Printing Speed | Up to 85pcs | Up to 85pcs | Up to 85pcs | Up to 85pcs | Up to 85pcs |
| Bottle Diameter | 20–100mm | 20–100mm | 20–130mm | 20–130mm | 20–150mm |
| Oval Radius | 25-250mm | 5-250mm | 5-250mm | ||
| Oval Width | 20-110mm | 20-140mm | 20-160mm | ||
| Bottle Height | 50–280mm | 50–280mm | 50–280mm | 50–280mm | 50–300mm |
| Printing Length | Up To 250mm | 250mm | 280mm | 280mm | 300mm |
| Printing Height | Up To 200mm | 200mm | 250mm | 250mm | 250mm |
