12 Color 5000pcs/Hr Tube Screen Printing Machine 250x200mm For Container
Product Details:
| Place of Origin: | DONGGUAN CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SL1266-R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | NEGOTIATION |
| Packaging Details: | Plywood Package |
| Delivery Time: | One Month |
| Payment Terms: | T/T or LC |
| Supply Ability: | 10PCS/Month |
|
Detail Information |
|||
| Plate Type: | Screen Printer | Automatic Grade: | Automatic |
|---|---|---|---|
| Printing Color: | Multi Color Optional,1~12 Color | After-sales Service Provided: | Online Support,Video Technical Support |
| Condition: | New | Warranty: | 1 Year |
| Type: | Silk Screen Printing Machine | ||
| Highlight: | 5000pcs/hr tube screen printing machine,250x200mm tube screen printing machine,250x200mm container screen printing machine |
||
Product Description

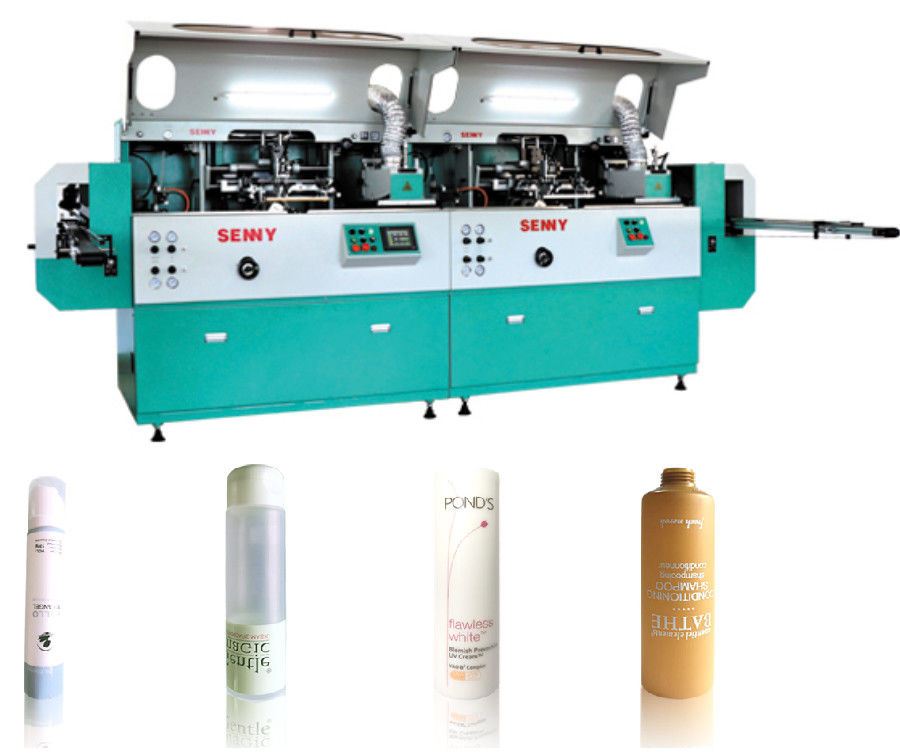

1-12 Color Tube Screen Printing Machine For Plastic Or Glass Tube Containers High Speed Screen Printer
This machine is specially designed for tube printing, customer can choose how many colors they want from 1 to 12. SL1266-R also can be configurated with Hot-stamping system, Labeling system, plasma system or UV-LED system.
Product features:
* Linear unit structure combination: option of adding up to a total of eight in-line colors.
* The machine is operated by PLC and touch panel,which is easy to operate with excellent warning system.
* In-feeding parts includes: in-feeding belt and machine hand for side-selection.
* The host unit of the machine side-selection driven by servo motor,rotation for dust-removal of round container and flame treatment.
* Flame treatment for round, elliptical and rectangle container
* Device for pre-positioning
* Second time positioning for printing.
* Electronic lift for squeegee.
* UV curing by rotating round container driven by stepper motor.
* Electronic UV system: device for adjusting light freely(LED UV curing system can be as a replacement)
* Elliptical and square container side-selection for auxiliary machine section
* Output parts: Machine hand for container standing up and belt
* Conform to CE standard.
Technical Specification:
| Round bottle diameter | Dia.20mm to Dia.100mm |
| Bottle height | 50mm to 280mm |
| Max.printing area | L250mmxW200mm |
| Max.Printing Speed | Up to 5000pcs/hr |
Sample picture:
Factory picture:
Shipping:
