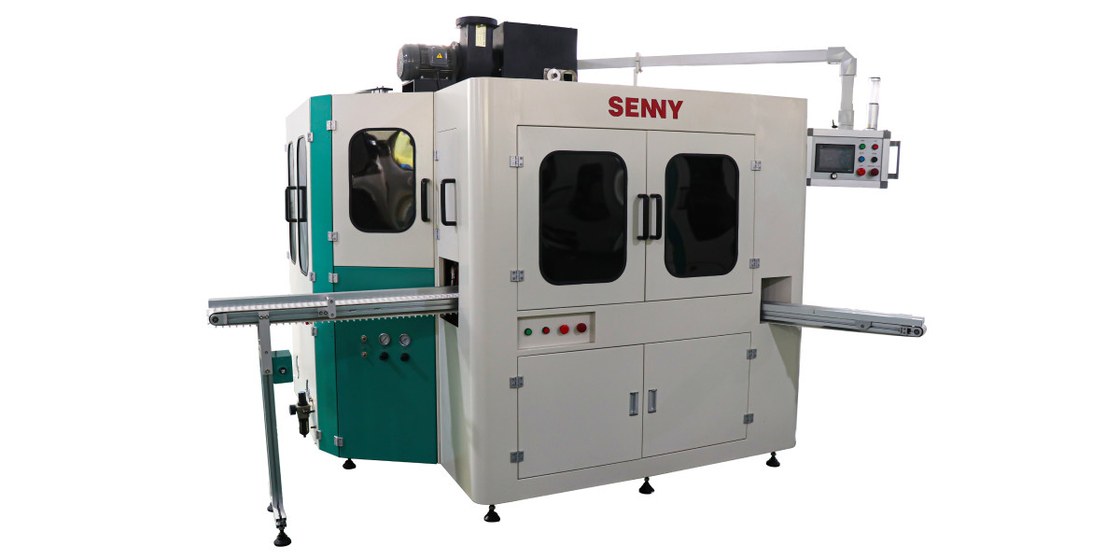

40pcs/Minute , 4 Colours Tube Screen Printing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS1249 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Automatic Grade: | Automatic | Control Type: | Servo-motor Control |
|---|---|---|---|
| Printing Durability: | High Durability | Power: | 380v 50/60hz |
| Printing Speed: | 40pcs/minute | Printed Colors: | 4 Colors |
| Highlight: | 4 Colours Tube Screen Printing Machine,40pcs/ Minute Tube Screen Printing Machine |
||
Product Description
40pcs/Minute , 4 Colours Tube Screen Printing Machine
This machine is specially designed for soft tubes.
Wiht servo-motor control,it is easy to operate,and the printing picture is accurate.
Machine Features
The machine is suitable for screen printing various colors of UV ink, hot stamping and other decorations on bottles, jars, caps and other shapes of products, which are made of plastic, metal, glass and other materials.
The machine is specially developed for small container printing, with compact structure and small footprint.
The machine adopts an integrated turntable design, all printing functions are completed in the same set of fixture, the printing accuracy is as high as ±0.1mm, and the product won't be scratched.
The machine is driven by digital control servo motor to realize 360-degree printing of products, equipped with remote management and service functions (Industry 4.0).
The machine adopts well-known brand electrical components, PLC control system, easy-to-use touch screen and wireless tablet operation, with reliable performance.
Optional Configuration
Hot stamping function.
Visual registration function.
Finished product quality inspection function.
Plasma surface treatment function.
LED-UV curing system.
Technical specification:
| Printing stations | 4Stations |
| Printing speed | Up to 70 pcs/minute |
| Max.printing area | L250MMXW160MM |
| Tube height | 220mm |
| Air pressure | 6 to 7 Bar |
| Power | 380v 50/60hz |
