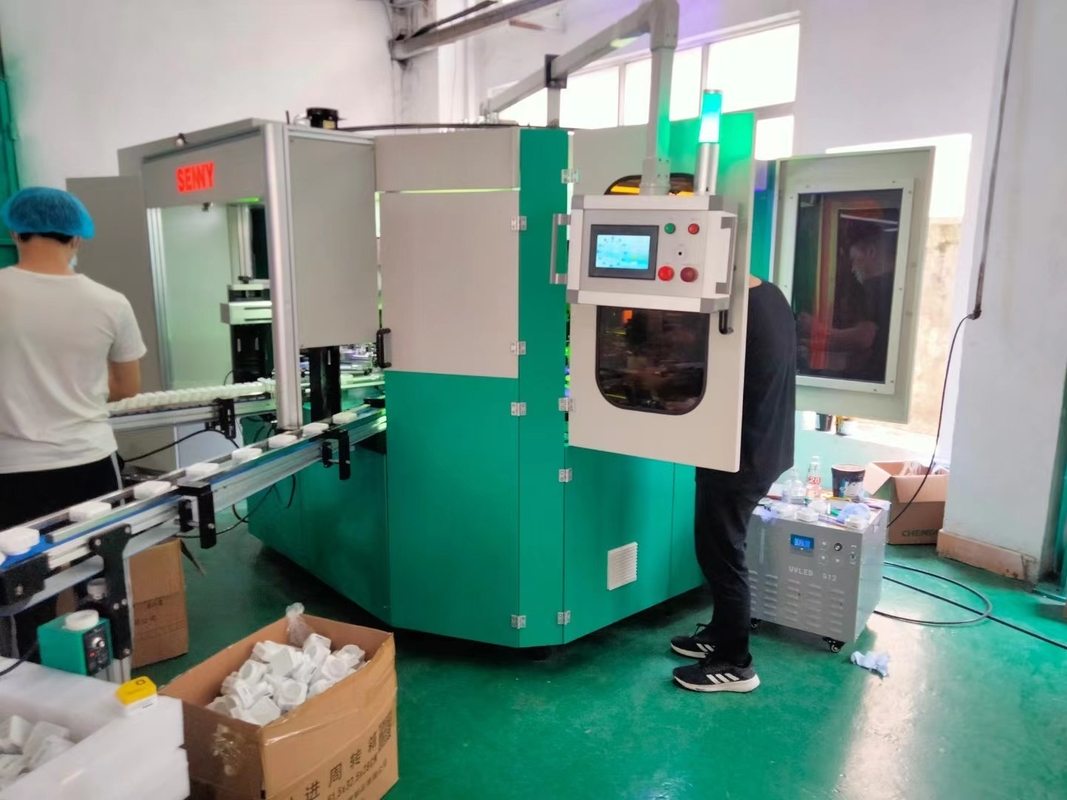

Plastic Tube Mascara Bottle Screen Printing Hot Stamping Machine CNC Rotary Up To 60pcs / Min
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS1039-2C1H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Film wrapping |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 15pcs/month |
|
Detail Information |
|||
| Automatic Grade: | Automatic | Warranty: | 1 Year |
|---|---|---|---|
| Printing Durability: | High Durability | Control System: | Servo-Motor Control |
| Printing Speed: | 60Pcs/min | Printed Colors: | 1-6 Colors |
| Highlight: | Bottle Screen Printing Hot Stamping Machine,Tube Screen Printing Hot Stamping Machine |
||
Product Description
Plastic Tube Mascara Bottle Screen Printing Hot Stamping Machine CNC Rotary Up To 60pcs / Min
Main functions:
- Mechanical push tube feeding function can be configured.
- Servo-driven rotary table 10 servo-driven workstations rotate to realize various functions.
- Station 1: Successful identification of incoming materials and electrostatic dust removal function.
- Station 2: Flame surface treatment function.
- Station 3: Flame surface treatment function.
- Station 4: 1st color servo-driven screen printing function.
- Station 5: UV curing function: UV curing function.
- Station 6: The second color servo-driven screen printing function.
- Station 7: The UV curing function is a servo-driven screen printing function for the second color.
- Station 8: 3rd color servo-driven hot foil stamping function.
- Station 9: UV Curing Function UV Curing
- Station 10: Discharge and discharge fault detection function.
- Mechanical tube pulling and unloading function.
- Wireless flatbed control function.
Technical Parameters:
Printing Speed: Up to 60pcs/min (Actual printing speed will depend on the specific tubes, such as shape, weight and printing requirements )
Tube height: 60-220mm
Tube diameter: 15-70mm
Max printing area: L220mm X H180mm
Printing Accuracy: ±0.1mm
Liquefaction supply : 0.15Mpa
Liquefaction consumption: 5L/min
Air pressure : 6-7 bar
Air consumption: 1000L/Hr
Power supply : AC380V 3 Phase 5 Wire 50Hz / 60Hz
Rated power : 21KW
Optional Configuration:
-
Unscrambling & feeding machine.
-
Plasma surface treatment function.
-
Varnishing function.
-
Hot stamping function.
-
LED-UV curing function.
-
Finished product quality inspection function.
