High Accuracy Cartridge Hard Tube Printing Machine Modular Screen Printer

High Accuracy Cartridge Hard Tube Printing Machine Modular Screen Printer

Product Details:

Place of Origin: China
Brand Name: Senny
Certification: CE SGS
Model Number: SRS1246

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Plywood Package
Delivery Time: One Month
Payment Terms: T/T
Supply Ability: 15pcs/month
Get Best Price Contact Now

Detail Information

Automatic Grade: Automatic Machine Color: Green + Ivory
Printing Durability: High Durability Control System: Servo-Motor Control
Printing Speed: 80Pcs/min Printed Colors: 1-6 Colors
Highlight:

High Accuracy Hard Tube Printing Machine

,

Cartridge Hard Tube Printing Machine

,

Modular Printing Machine

Product Description

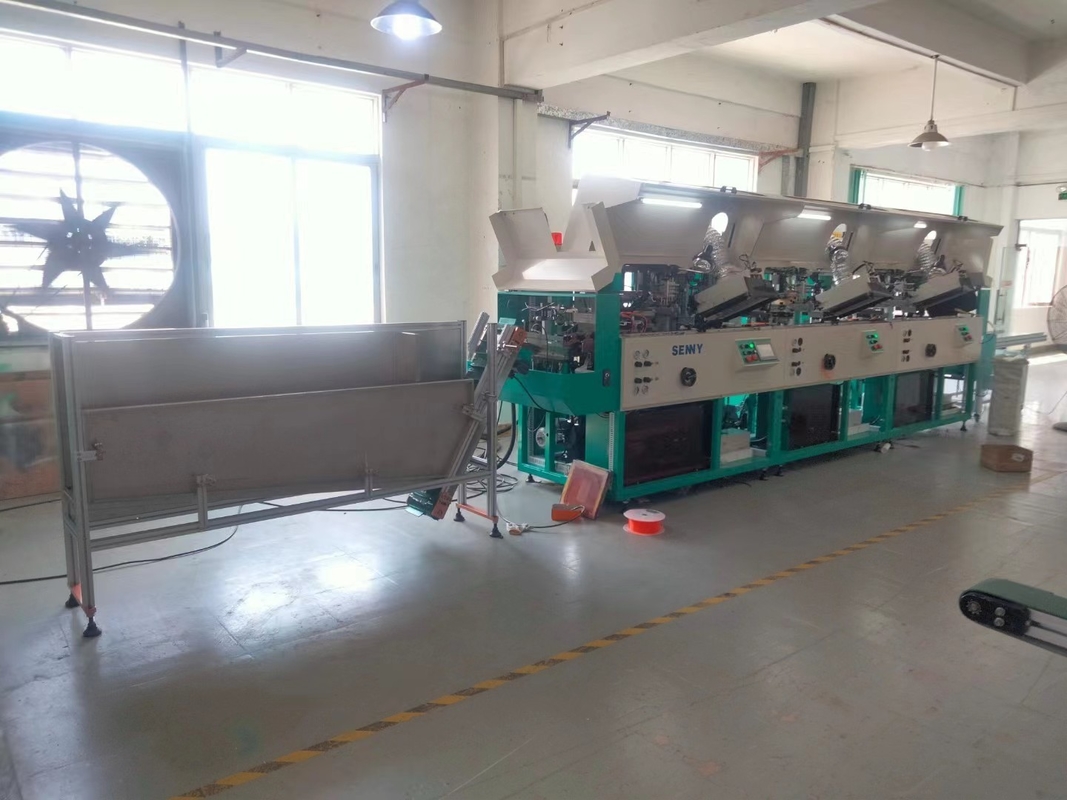

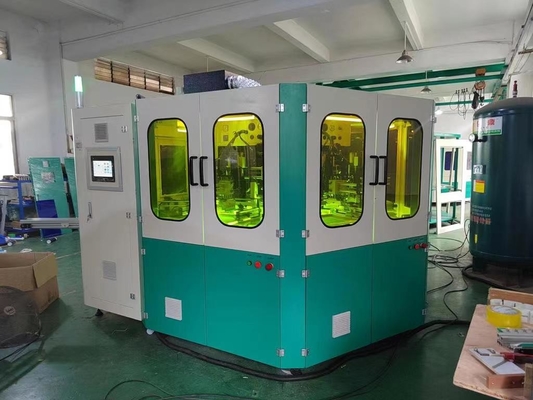

High Accuracy Cartridge Hard Tube Printing Machine Modular Screen Printer



Plastic Lubricant Cartridge Screen Printer 1-6 colors available at speeds up to 80 pieces per minute.



Cartridges can be printed on either a combination screen printer or a CNC rotary machine, the choice depends on the distance from the printed image to the printed edge. If the distance is greater than or equal to 6 mm, you can choose a combination screen printer, but if it is less than 6 mm, please consider using a CNC rotary machine.





Machine Features:



- Two-color, three-color, four-color and six-color printing models are available to meet different customer needs.



- The machine is suitable for 360° printing of graphics and text on the surface of plastic, metal and glass containers of all shapes.



- Container pre-registration, surface treatment, multi-color printing and curing are done on a servo fixture, which provides accurate color registration and is less likely to damage the product surface.



- Optional bottle bottom or bottle mouth visual positioning system when feeding containers, solving the problem that traditional printing machines tend to damage the bottom of containers.



- UV curing can be partially or fully utilized with an LED-UV curing system, saving energy.



- The last screen printing and UV curing station can be removed and a visual inspection system can be installed for the finished product, which saves labor by separating qualified and unqualified products after discharging.



- The machine is equipped with a remote management function, which can solve machine faults and technical problems for customers from anywhere with an internet connection.



Parameters



Machine Model SRS826 SRS1036 SRS1246 SRS1666
Work Station 8 10 12 16
Printing Speed Up to 80pcs/hour Up to 80pcs/hour Up to 80pcs/hour Up to 80pcs/hour
Tube Diameter 16–75mm 16-75mm 16-75mm 16-75mm
Tube Height 60–220mm 60–220mm 60–220mm 60–220mm
Printing Length 220mm 220mm 220mm 220mm
Printing Height 180mm 180mm 180mm 180mm
Printing Accuracy ±0.1mm ±0.1mm ±0.1mm

±0.1mm





Plastic Lubricant Cartridges Tube Screen Printing Machine 1-6 Colors 80pcs / Min 0Plastic Lubricant Cartridges Tube Screen Printing Machine 1-6 Colors 80pcs / Min 1
