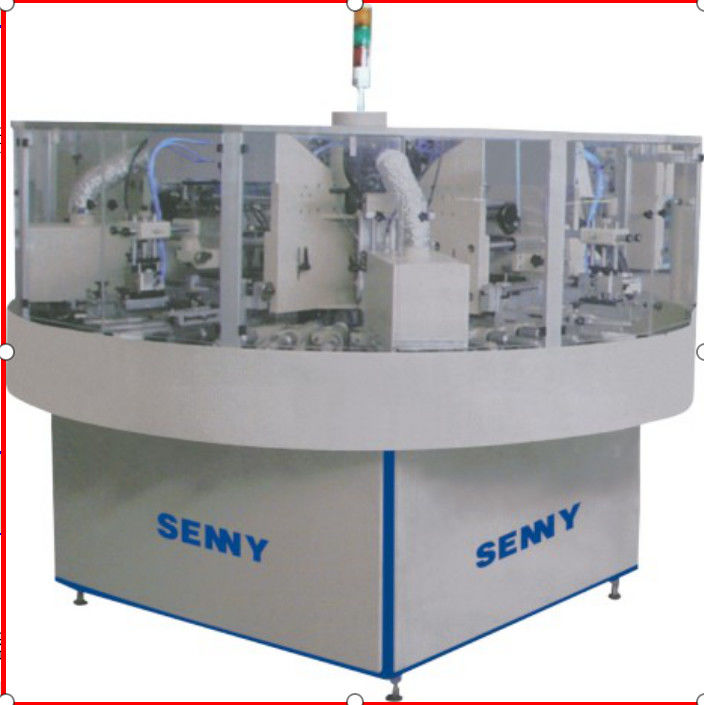

22kw Cylindrical Screen Printing Machine With 3600pcs/Hr High Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SR36-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | can be negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10PCS /MONTH |
|
Detail Information |
|||
| Printing Cost: | Low Cost | Printing Durability: | High Durability |
|---|---|---|---|
| Printing Size: | Customized Size | Printing Time: | Short Time |
| Warranty: | 1 Year | After-Sales Service Provided: | Video Technical Support, Online Support |
| Highlight: | 22kw Screen Printing Machine,3600pcs/Hr Screen Printing Machine |
||
Product Description
Soft Tube Screen Printing Machine With Varnishing And Hot Stamping Machine
Applications:
This hot stamping machine is widely used to print on the soft tube, bottle cap, glass glue barrel, cream can, etc.
Features:
1. The machine adopts advanced precision cam intermittent separation and no positioning point mechanical positioning printing method, accurate color registration.
2. The machine adopts PLC programmable controller and easy-to-use touch screen, which makes the operation of the machine simple and stable.
3. The machine speed can be adjusted according to the printing needs to meet different printing requirements.
4. Flame surface treatment, with automatic continuous flame spraying function, can meet different printing speeds, and equipped with safety anti-scald device.
5. Squeegee pressure adjustable, squeegee part with X, Y, Z, Z-R direction and angle fine-tuning.
6. The machine is equipped with high strength UV curing system.
Technical Specification:
| Max. printing area | 220×150mm |
| Max. screen frame size | 350×300mm |
| Min. round bottle diameter | φ15mm |
| Max. round bottle diameter | φ70mm |
| Min. bottle height | 20mm |
| Max. bottle height | 230mm |
| Max. printing speed | 3600pcs/hr |
| Power voltage | 380V 50Hz |
| Power consumption | 22KW |
| Air pressure | 5-7 kg/cm2 |
| Machine weight | 2800KG |
| Dimensions | L2300×B2300×H2200mm |
Printing samples
Customer is making field trip to our factory and checking machines before shipping
Want to Know more details about this product
