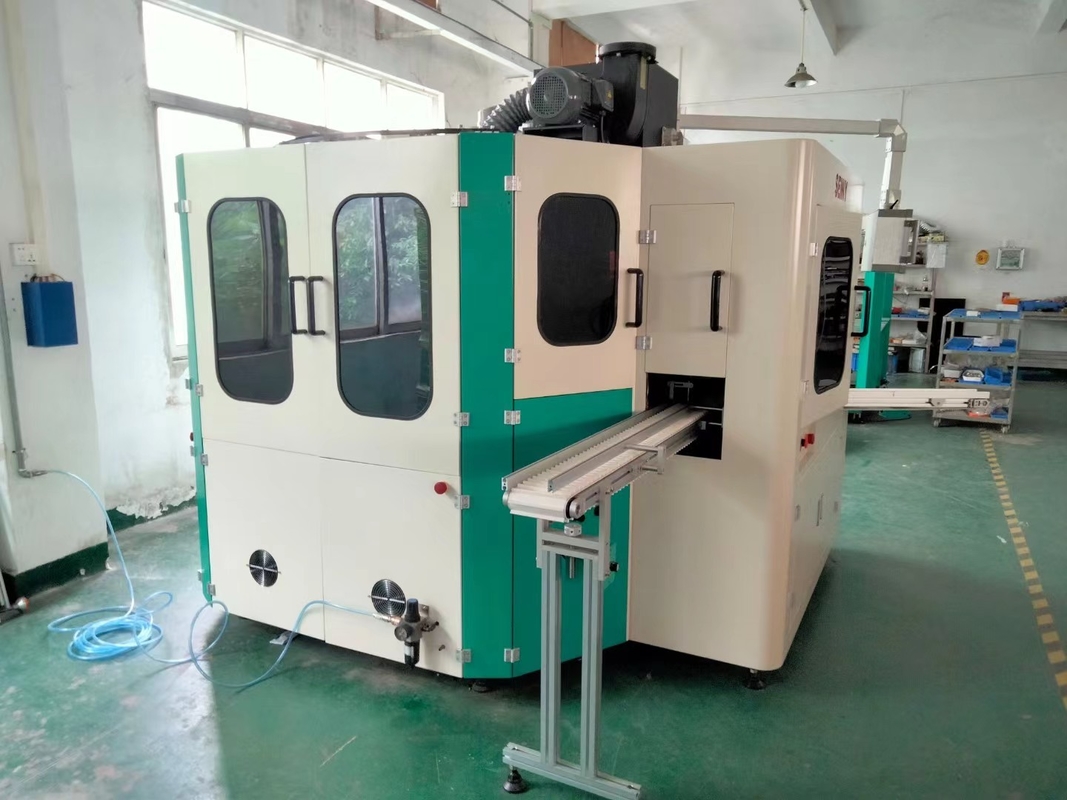

Soft Tube Screen Printing Machine With Varnishing And Hot Stamping Machine, Servo Driven Printer
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS1249-3S1V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Film wrapping |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 15PCS /Month |
|
Detail Information |
|||
| Automatic Grade: | Automatic | Printing Durability: | High Durability |
|---|---|---|---|
| Printing Speed: | 60pcs/min | Control Systl: | Servo-Motor Control |
| Warrenty: | 1 Year | After Service: | On-line Or Video Technical Support |
| Highlight: | Servo Driven Tube Screen Printing Machine,Varnishing Tube Screen Printing Machine,Hot Stamping Tube Screen Printing Machine |
||
Product Description
Soft Tube Screen Printing Machine With Varnishing And Hot Stamping Machine, Servo Driven Printer
Machine Application
This machine is a new screen printer developed to realize the concept of "Simplicity and Efficiency". It is designed for printing round tube. From single color to multi-color can be selected and combined freely. With the functions of surface treatment, automatic alignment, no part no printing, screen printing, UV/LED curing, etc., it can satisfy the diversity of current product printing process and can be equipped with optional automatic feeding system.
It has the advantages of high degree of automation, easy to use, high precision, high reliability, low price, easy to operate and maintain. It is used widely in cosmetic industry, wine industry, home decoration industry, food industry and so on.
Printing Parameters
| Max. speed | 3600pcs/hour |
| Printing diameter | Φ16~Φ60 |
| Max printing area(L×W) | 180mm×180mm |
| Container printing height | 180mm |
Technical Parameters
| Machine rated voltage | 380V 3P 50HZ |
| Machine rated total power | 35KVA |
| Machine running max. power | 25KVA |
| Compressed air pressure | 6-7Bar |
| Liquefied petroleum gas pressure | 0.8-2Bar |
| Main motor power | 2.2KVA |
| Gearbox ratio | 1:140 |
| UV Power (one) | 4KVA |
Optional Configuration:
- Unscrambling & feeding machine.
- Plasma surface treatment function.
- Varnishing function.
- Hot stamping function.
- LED-UV curing function.
- Finished product quality inspection function.
