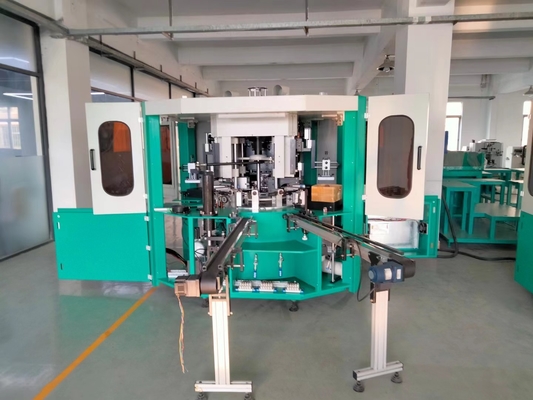

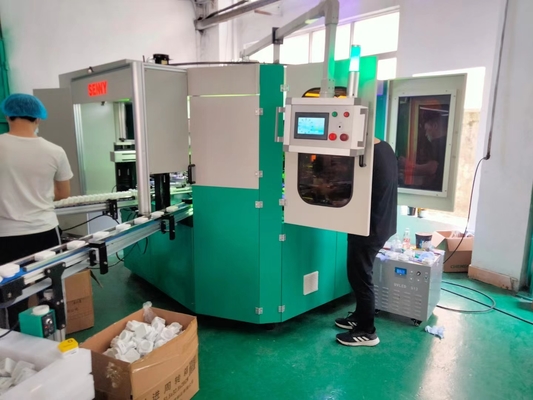

Plastic Tube Mascara Bottle Screen Printing Hot Stamping Machine CNC Rotary Up To 60pcs / Min

Product Description

Plastic Tube Mascara Bottle Screen Printing and Hot Stamping Machine, CNC Rotary, Up to 60pcs/min

1. Main functions:

- Can configurate mechanical push tube feeding function.

- Servo-driven turntable 10 servo-driven workstations rotate to realize various functions.

- 1^st station: successfully identify incoming materials and electrostatic dust removal functions.

- 2^nd station: flame surface treatment function.

- 3rd station: flame surface treatment function.

- 4^th station: the 1st color servo drive screen printing function.

- 5^th station: UV curing function.

- 6^th station: the 2^nd color servo drive screen printing function.

- 7^th station: UV curing function

- 8^th station: the 3^rd color servo drive hot stamping function

- 9^th station: UV curing

- 10^th station: discharging and discharging failure detection function.

- Mechanical pulling tube and discharging function.

- Wireless tablet control function.

2. Technical Parameters:

Printing Speed: Up to 60pcs/min (Actual printing speed will depend on the specific tubes, such as shape, weight and printing requirements )

Tube height: 60-220mm

Tube diameter: 15-70mm

Max printing area: L220mm X H180mm

Printing Accuracy: ±0.1mm

Liquefaction supply : 0.15Mpa

Liquefaction consumption: 5L/min

Air pressure : 6-7 bar

Air consumption: 1000L/Hr

Power supply : AC380V 3 Phase 5 Wire 50Hz / 60Hz

Rated power : 21KW

3.Optional Configuration:

• Unscrambling & feeding machine.

• Plasma surface treatment function.

• Varnishing function.

• Hot stamping function.

• LED-UV curing function.

• Finished product quality inspection function.
