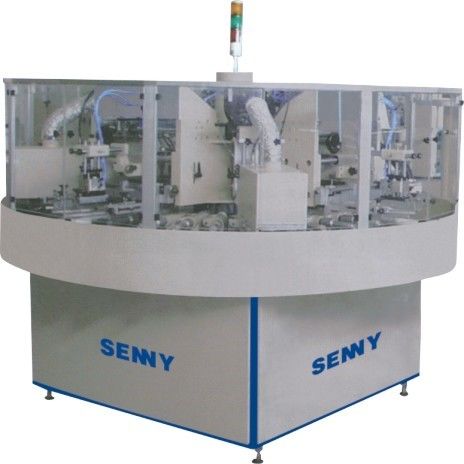

22kw Cylindrical Screen Printing Machine With 3600pcs/Hr High Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SR36-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10PCS Per Month |
|
Detail Information |
|||
| Usage: | Bottles, Jars, Caps | After-sales Service Provided: | Video Technical Support, Online Support |
|---|---|---|---|
| Plate Type: | Screen Printer | Warranty: | One Year |
| Automatic Grade: | Fully Automatic | ||
| Highlight: | 3600pcs/hr cylindrical screen printing machine,22kw cylindrical screen printing machine,3600pcs/hr high speed screen printing machine |
||
Product Description
High Speed Automatic Soft Tube Screen Printing Machine With Ultraviolet Curing With Safety Anti-Tempering Device
Applications:
This hot stamping machine is widely used to print on the soft tube, bottle cap, glass glue barrel, cream can, etc.
Features:
1. This machine using advanced precision cam intermittent divider and no positioning point mechanical orientation printing mode, accurate color register.
2. PLC programmable controller and easy-to-use touch screen are adopted to make the machine easy to operate and stable.
3. The machine speed can be adjusted according to the printing needs to meet different printing requirements.
4. Flame surface treatment is equipped with automatic and continuous flame spraying function to meet different printing speed, and is equipped with safety anti-tempering device.
5. The pressure of the scraper is adjustable, and the scraper part has the function of fine-tuning the direction and angle of X, y, Z and z-r.
6. The machine is equipped with a high intensity UV curing system.
Technical Specification:
| Max. printing area | 220×150mm |
| Max. screen frame size | 350×300mm |
| Min. round bottle diameter | φ15mm |
| Max. round bottle diameter | φ70mm |
| Min. bottle height | 20mm |
| Max. bottle height | 230mm |
| Max. printing speed | 3600pcs/hr |
| Power voltage | 380V 50Hz |
| Power consumption | 22KW |
| Air pressure | 5-7 kg/cm2 |
| Machine weight | 2800KG |
| Dimensions | L2300×B2300×H2200mm |
Printing samples
Customer is making field trip to our factory and checking machines before shipping
