380V 1 Color Screen Printing Machine , 60Hz 2 Station Screen Printing Machine
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SRS829-D1CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T and LC |
| Supply Ability: | 10PCS /month |
|
Detail Information |
|||
| Plate Type: | Screen Printer | Station: | 2 Station |
|---|---|---|---|
| Printing Color: | 1 Color + 1 Color Hot Stamping | Product Shape: | Irregular Shapes |
| Warrenty: | One Year | After Service: | On-line Or Video Technical Support |
| Highlight: | 380V 1 color screen printing machine,60Hz 1 color screen printing machine,60Hz 2 station screen printing machine |
||
Product Description
Hot Stamping Irregular Shapes Bottle/Caps/Jars Fully Automatic Screen Printing Machine Operates 360 Degree
Catalog 04_compressed.pdf

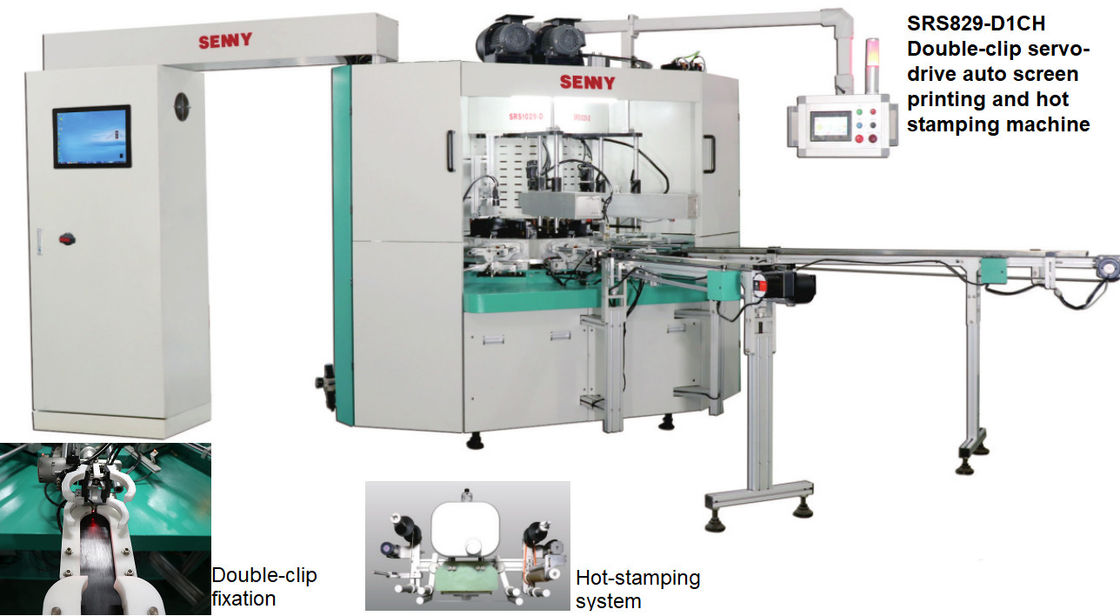

SRS829-D1CH is designed for oval/square/irregular shape bottles, caps and jars' screen print and hot foil stamping, the printing speed can up to 45pcs per minute.

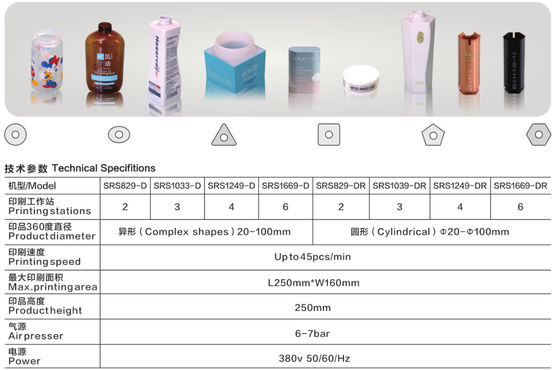

Technical specification
| Model | SRS829-D1CH |
| Print color | 1-color screen print + 1-color hot stamping |
| Product stations | 2 |
| Product diameter | irregular shape---20~100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air pressure | 6-7 bar |
| Power | 380v 50/60Hz |
Features:
This machine has a lot of features and characteristics, please refer to below:
1). The machine can be designed with structure of one color screen printing and one color foil stamping, two functions in one machine at the same time.
2). The innovative transmission system is very steady in passing the bottles, easy to shift between different types of products, easy to operate.
3). The machine is controlled by world famous PLC and touch screen display, with kinds of monitor system to ensure the machine running stable and safe at high speed.
4). According to the characteristics of products , this machine can be equipped with kinds of functions such as automatic loading and unloading, orientation, non-printing without bottles, etc.
5). All key components are imported from German, USA and Japan to ensure the machine quality and stability of printing.
6). Three languages such as Chinese, English and Spanish supported. Also we can write other language in the PLS according to your mather language.
7). We can customize machine according to the special products
8). Can choose configuration freely, such as Plasma treating system, CCD fix system, Hot-stamping system, UV-LED system
Feeding device:
Optional configuration:
For The Screen Printing Machine, We Can Teach You:
1. How to make screen frame
2. Choose mesh density according to your product
3. How to make squeegee, blade
4. Ink mixing
5. Setting up screen printing machine
6. Maintenance of screen printer
Sample Exhibition
