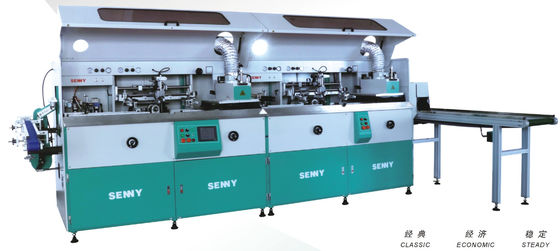

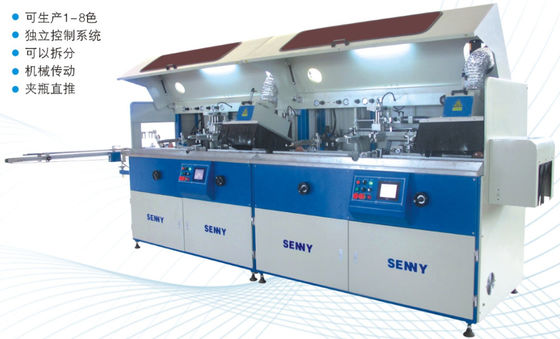

80pcs/Min Fully Automatic Screen Printing Machine
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SL168 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | TT or LC |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Stations: | 1-8 |
|---|---|---|---|
| Plate Type: | Screen Printer | After-sales Service: | Video Or On-line |
| Printed Colors: | 1 To 8 | Brand: | Senny Or OEM |
| Highlight: | 80pcs/min fully automatic screen printing machine,OEM fully automatic screen printing machine,80pcs/min 8 color screen printing machine |
||
Product Description
Versatile Fully Automatic Screen Printing Machine On Cylindrical, Elliptical And Flat Containers
This machine is designed for cylindrical,elliptical and flat bottles,it is widely used in chemical and food package.
Product features:
* SL168 Automatic machine for silk-screen printing of containers in plastic or other materials, having a circular, elliptical, square or rectangular section with centered or off-center neck, and it is easy for changing different shapes on printing section.
* Shape changeover: 30minutes for each machine, from cylindrical format to elliptical or flat format.
* Linear unit structure combination: can operate as Maximum 8 colors prinitn system, and each one is independent controlling system, can be splited according to how many colors required.
* The machine is operated by PLC and touch panel, which is easy to operate with excellent warning system.
* In-feeding parts includes: in-feeding belt and machine hand for side-selection.
* Flame treatment for round, elliptical and square container
* Device for pre-positioning
* Second time positioning for printing.
* Electronic lift for squeegee.
* UV curing by rotating round container driven by stepper motor.
* Electronic UV system: device for adjusting light in 3-levels(LED UV curing system can be as a replacement)
* Side-selection of elliptical and square container on auxiliary machine section
* Out put belt
Technical Specifications:
| Max production speed | 4800pcs/hr |
| Min. Diameter of cylindrical container | 20mm |
| Max.Diameter of cylindrical container | 100mm |
| Min. Radius of elliptical container | 30mm |
| Max. Radius of elliptical container | 250mm |
| Max. Width or elliptical and flat container | 120mm |
| Min. Length of elliptical and flat container | 50mm |
| Max. Length of elliptical and flat container | 280mm |
| Max. printing width | 200mm |
| Max. printing length | 300mm |
Printing samples

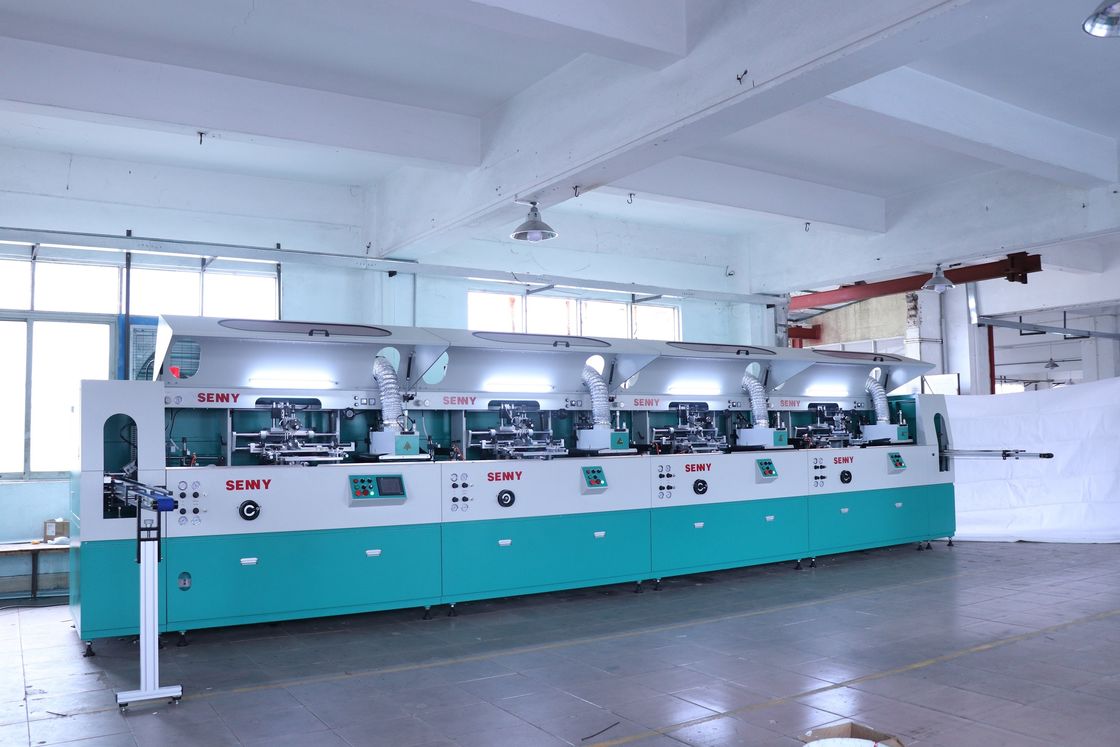

Exihibition Show
