50W Semi Automatic Screen Printing Machine , 600pcs/Hr Industrial Screen Printer
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SA1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/YEAR |
|
Detail Information |
|||
| Plate Type: | Screen Printing Machine | Automatic Grade: | Semi-automatic |
|---|---|---|---|
| Condition: | New | Warranty: | One Year |
| Printing Color: | Multi Colors | Machine Color: | Customerized Or As Pic |
| Highlight: | 50W semi automatic screen printing machine,600pcs/hr semi automatic screen printing machine,600pcs/hr industrial screen printer |
||
Product Description

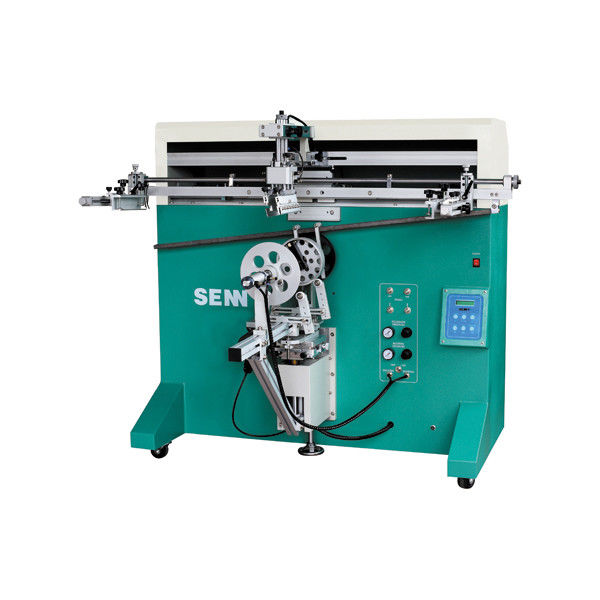

Rounded Plastic Buckets Semi Automatic Screen Printing Machine 1 To Multi Colors Max Printing Diameter Φ300mm
Technical Characteristics:
1. The microcomputer controls each function action, with high degree of automation and simple and convenient operation.
2. There are four digit automatic counter and reset function inside.
3. The machine has 9 speed options to meet different printing requirements.
4. It is equipped with the function of filling and pressure regulation of the vessel.
5. the scraper pressure is adjustable, and the scraper parts have fine adjustment functions of X, y, Z and Z-R direction and angle.
6. the worktable and frame parts can realize the X, y, Z and xy-r direction and angle adjustment functions.
Application Scope:
It is mainly used for one color to multi color repeated screen printing of circular plastic containers such as washing products, cosmetics, pharmaceuticals, food and decorative products.
Technical Specifications:
According to printing area's size, we have below different machines:
| Mode | SA250 | SA400 | SA700 | SA1000 |
| Max. printing area | 200X250mm | 350X250mm | 600X250mm | 900X250mm |
| Max.screen frame size | 450X400mm | 550X400mm | 850X400mm | 1200X400mm |
| Max.printing diameter | Φ100mm | Φ120mm | Φ200mm | Φ300mm |
| Max.printing speed | up to 1000pcs/hr | up to 1000pcs/hr | up to 800pcs/hr | up to 600pcs/hr |
Specific technical points for SA1000
| Power supply voltage | 220V, 50HZ |
| Power consumption | 50W |
| Air supply pressure | 4-6 kg/cm2 |
| Machine weight | 250kg |
| Dimensions |
L1450×B1150×H1300mm |
