2 Stations 3000pcs/Hour Fully Automatic Screen Printing Machine OEM For Round Bottle
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SC128 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | TT or LC |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Stations: | 1-2 |
|---|---|---|---|
| Plate Type: | Screen Printer | After-sales Service: | Video Or On-line |
| Printed Colors: | 1 To 2 | Brand: | Senny Or OEM |
| Highlight: | 3000pcs/hour fully automatic screen printing machine,OEM fully automatic screen printing machine,3000pcs/hour round bottle screen printing machine |
||
Product Description
Fully Automatic Screen Printing Machine For Glass Bottle, Oil Filter And Round Containers
Application:
This machine is designed for cylindrical container, the material can be glass, plastic or metal; it is widely used in chemical and food package.
Features:
1. Less tooling, easy operation, low maintenance and high accuracy. High colour to colour register accuracy.
2. Controlled by PLC and touch screen display, with kinds of monitor system to ensure the machine running stable and safe at high speed.
Main Components:
- Standing feeding belt
- Flat conversion feeding mechanism
- Divider driving start and stop
- Chain and v-plate conveying products
- Automatic screen printing
- High energy UV curing
- Discharging conversion standing belt
- Standing discharging conveyor belt, which can be connected with the production line.

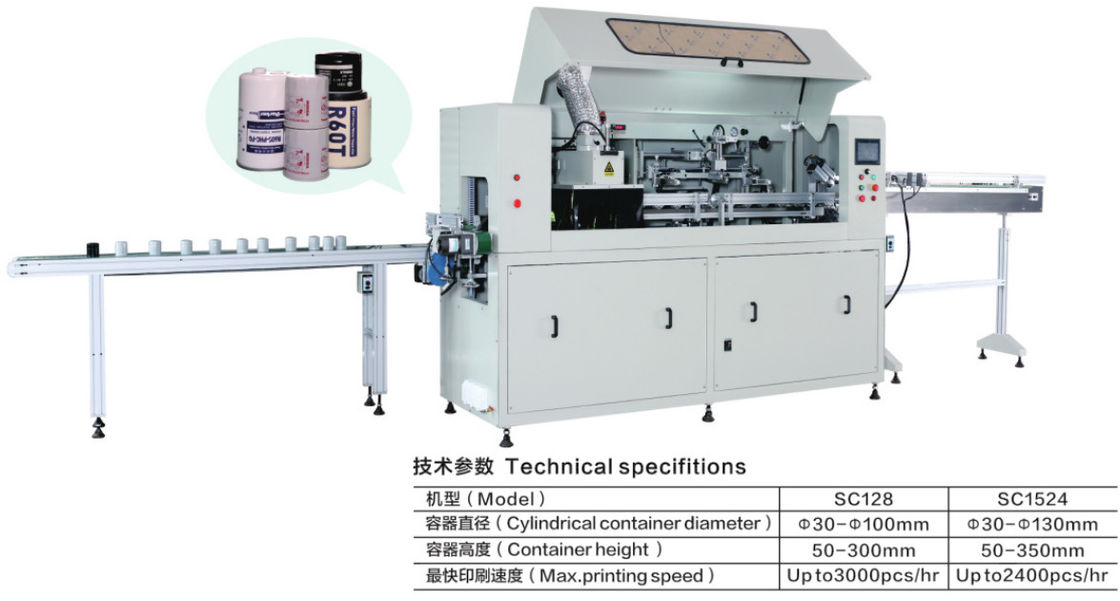

Technical Specifications:
We designed 2 different machines SC128 and SC1524 according to cylindrical container's diameter and height and printing speed:
| Model | SC128 | SC1524 |
| Cylindrical container diameter |
Φ30 - Φ100mm |
Φ30 - Φ130mm |
| Container height | 50 - 300mm | 50 - 350mm |
| Max. printing speed | Up to 3000pcs/hr | Up to 2400pcs/hr |
Printing samples
