Automatic Hot Stamping Machine , 3000pcs/Hr Heat Foil Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS1039-D2CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10PCS /month |
|
Detail Information |
|||
| Printing Color: | 3 Colors | Condition: | New |
|---|---|---|---|
| Printing Durability: | High Durability | Station: | 3 Stations |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | 3000pcs/Hr Hot Stamping Machine,Heat Foil Hot Stamping Machine,Automatic Hot Stamping Machine |
||
Product Description

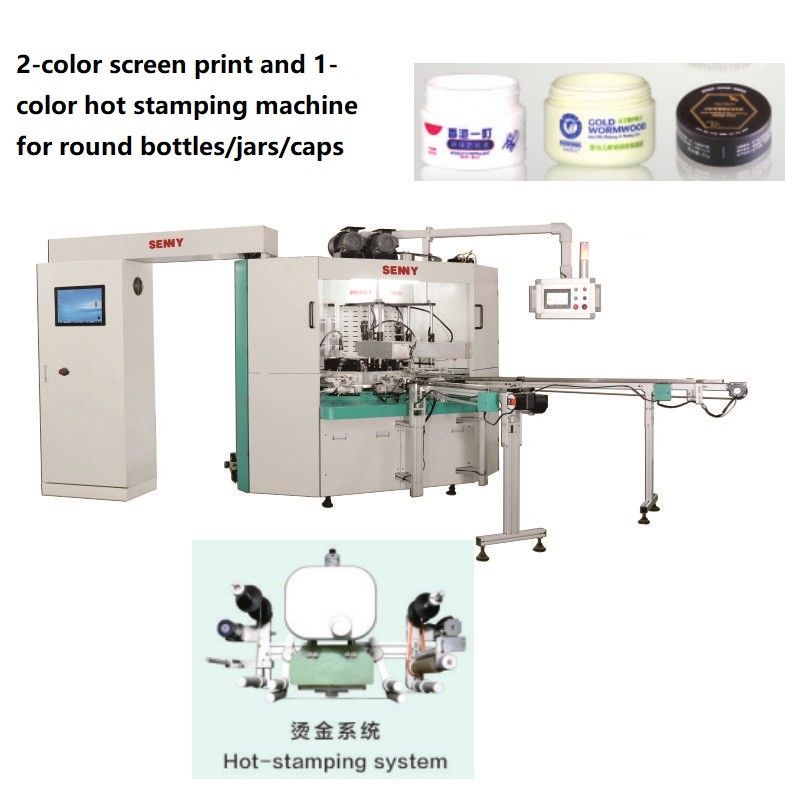

Round Bottles, Jars, Caps Hot Stamping And Screen Printer 360 Degree Printing Machine With Double-Clip Fixation
For The Screen Printing Machine, We Can Teach You:
1. How to make screen border
2. Select the mesh density according to the product
3. How to make squeegees and blades
4. Ink mixing
5. Installation of screen printing machine
6. Maintenance of screen printing machine
Product Features:
1. SRS1039-D2CH is designed for plastic round containers, the printing color can be designed from 1 to 3 colors according to customer's requirement, the hot stamping color is 1 color.
2. 360 degree screen printing and hot stamping.
3. Full servo drive screen printing and hot stamping.
4. Mechanical register, color-coded register and visual register functions.
5. Electronic UV system and non-polar dimming function (optional LED-UV curing system).
6. Touch screen display for easy man-machine dialog and complete warning system.
Technical Specifications
| Max. printing area | 280 X 200mm |
| Min. cylindrical-container diameter | Φ25mm |
| Max. cylindrical-container diameter | Φ90mm |
| Max. width of elliptical and flat container | 120mm |
| Min. container height | 60mm |
| Max. container height | 260mm |
| Max. screen frame size | 450 X 250mm |
| Max. printing speed | 3000pcs/hr |
Printing samples
Optional Configuration
Customer's plant using our machine
