2 Stations 380V 50Hz Plastic Hot Stamping Machine For Food Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS829-R1CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10PCS /month |
|
Detail Information |
|||
| Printing Color: | 1 Color Screen Printing+1 Color Hot Foil Stamp | Condition: | New |
|---|---|---|---|
| Printing Durability: | High Durability | Station: | 2 Stations |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | Plastic Hot Stamping Machine,Food Industry Hot Stamping Machine,380V Hot Stamping Machine |
||
Product Description
Nesting Fixation Hot Stamping And Screen Printing Machine, Colors Can Be Customized
SRS829-R1CH is designed for screen printing and hot stamping of oval/square/irregular shaped bottles, lids and jars at printing speeds up to 45 pieces per minute.
The machine is designed for round, oval and square shaped bottles, cups etc.
The machine can be widely used in cosmetic and food industry.
The machine adopts PLC system. High efficiency and high precision.
Technical specification
| Model | SRS829-R1CH |
| Print color | 1-color screen print + 1-color hot stamping |
| Product stations | 2 |
| Product diameter | irregular shape---20~100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air pressure | 6-7 bar |
| Power | 380v 50/60Hz |
The main difference between the SRS829-D1CH and the SRS829-R1CH is the difference in the fixing method, the SRS829-D1CH is a double-clamp type while the SRS829-R1CH is a nested type, please refer to below:
Double clamp fixation:

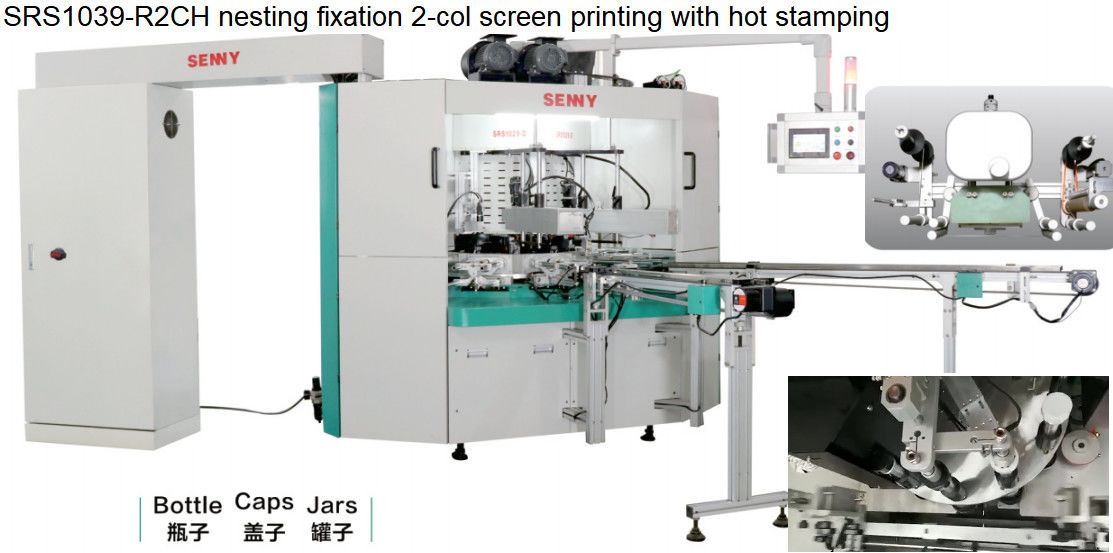

Nesting fixation:
Different items represent different color quantity:
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Irregular shapes 20-100mm | cylindrical 20-100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |
