2-6 Colors Glass Bottle Screen Printing Machine Printing Area 300mm X 200mm Servo Driven rotary Printer
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SRS388 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | TT or LC |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Stations: | 1-16 |
|---|---|---|---|
| Plate Type: | Screen Printer | After-sales Service: | Video Or On-line |
| Printed Colors: | 1 To 6 | Brand: | Senny Or OEM |
| Highlight: | Servo Driven Bottle Screen Printing Machine,Glass Bottle Screen Printing Machine,2-6 Colors Bottle Screen Printing Machine |
||
Product Description

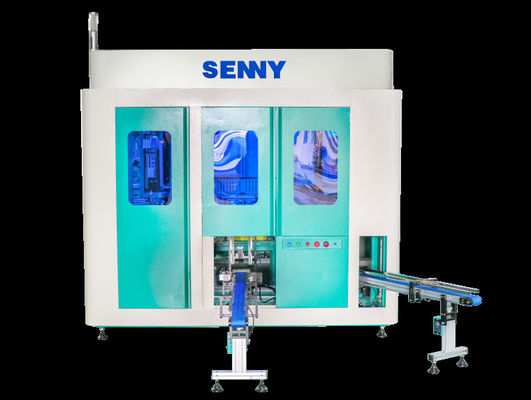

2-6 Colors Glass Bottle Screen Printing Machine, Printing Area 300mm X 200mm, Servo Driven rotary Printer
Machine application:
This machine is suitable for 360-degree printing of 3 colors of UV ink on bottles, cans, lids and other products of various shapes (such as round, oval, special-shaped) made of plastic, glass, metal and other materials.
Main Functions:
Wireless tablet control function;
Remote service management function;
Speed-adjustable conveyor belt separated feeding function;
Bottle standing manipulator feeding function;
Digital control servo motor drive 3-color 360-degree printing function;
UV curing function;
Bottle standing manipulator discharge function;
Speed-adjustable conveyor belt discharging function.
Ten workstations: 1. Visual positioning of the bottom of the feeding bottle and electrostatic dust removal; 2. Flame treatment; 3. Visual positioning of the bottle body; 4. 1st color screen printing; 5. LED-UV curing; 6. 2nd color screen printing; 7. LED-UV curing; 8. 3rd color screen printing (or hot stamping); 9. UV curing; 10. Discharging.
Machine Technical Parameter
| Printing speed | Up To 3000 Pcs/hour |
| Bottle height | 20-320mm |
| Printing diameter at 360° | ∮13mm～∮100mm |
| Liquefaction supply | 0.15Mpa |
| Air pressure | 5-7 bar |
| Power supply | AC220V 3 Phase 60Hz |
| Rated power | 30KW |
