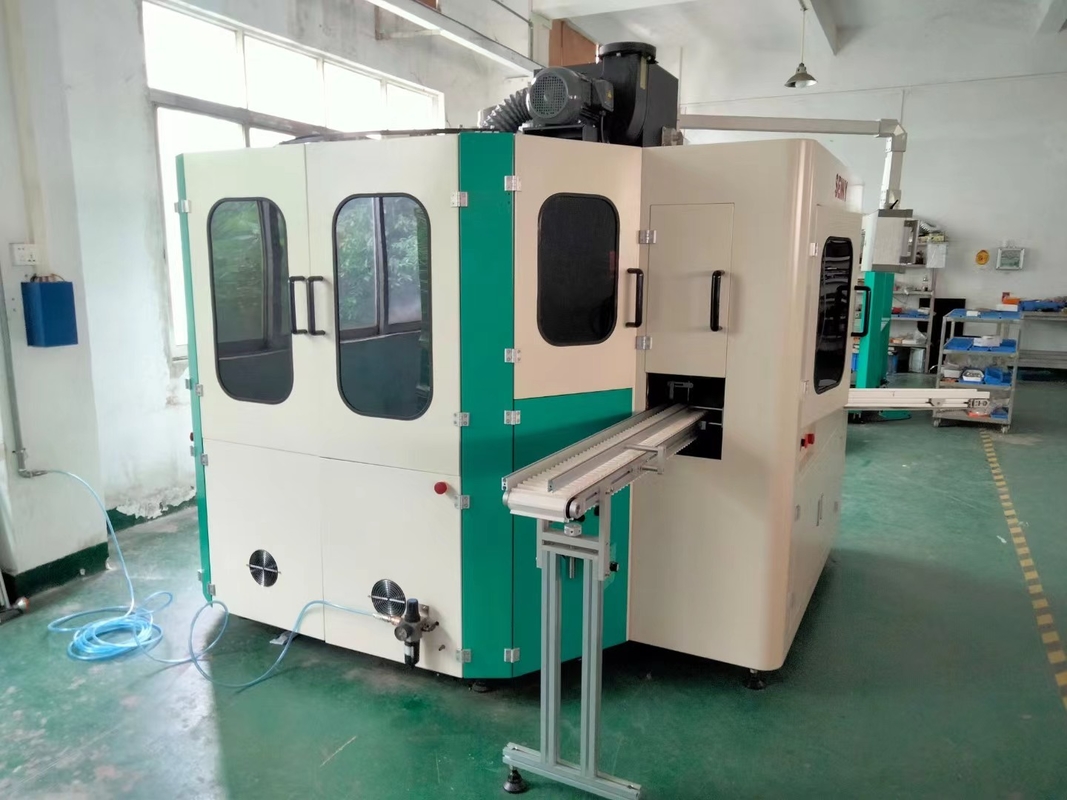

Soft Tube Screen Printing Machine With Varnishing And Hot Stamping Machine, Servo Driven Printer
Product Details:
| Place of Origin: | China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SRS1249-3S1V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Film wrapping |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 15PCS Per Year |
|
Detail Information |
|||
| Color Numbers: | 1-6 Colors | Control System: | Servo-Motor Control |
|---|---|---|---|
| Automatic Grade: | Automatic | Condition: | New |
| Printing Speed: | 60pcs/min | Warranty: | 1 Year |
| Highlight: | Varnishing Tube Screen Printing Machine |
||
Product Description
Soft Tube Screen Printing Machine With Varnishing And Hot Stamping Machine, Servo Driven Printer
Machine Application
This machine is a new type of screen printing machine developed to achieve the concept of "simple and high efficiency". It is specially designed for printing round soft tubes. You can freely choose from single color up to multi-color, and can be freely combined. With surface treatment, automatic alignment, no part no printing, screen printing, UV/LED curing and other functions, to meet the current product printing process diversity, and optional automatic feeding system.
It has the advantages of high degree of automation, convenient use, high precision, high reliability, low price, easy operation and maintenance, etc. It is widely used in cosmetics industry, wine industry, home decoration industry, food industry and so on.
Printing Parameters
| Max. speed | 3600pcs/hour |
| Printing diameter | Φ16~Φ60 |
| Max printing area(L×W) | 180mm×180mm |
| Container printing height | 180mm |
Technical Parameters
| Machine rated voltage | 380V 3P 50HZ |
| Machine rated total power | 35KVA |
| Machine running max. power | 25KVA |
| Compressed air pressure | 6-7Bar |
| Liquefied petroleum gas pressure | 0.8-2Bar |
| Main motor power | 2.2KVA |
| Gearbox ratio | 1:140 |
| UV Power (one) | 4KVA |
Optional Configuration:
- Unscrambling & feeding machine.
- Plasma surface treatment function.
- Varnishing function.
- Hot stamping function.
- LED-UV curing function.
- Finished product quality inspection function.
